DSBG-32-200-PPVA-N3
Product Overview

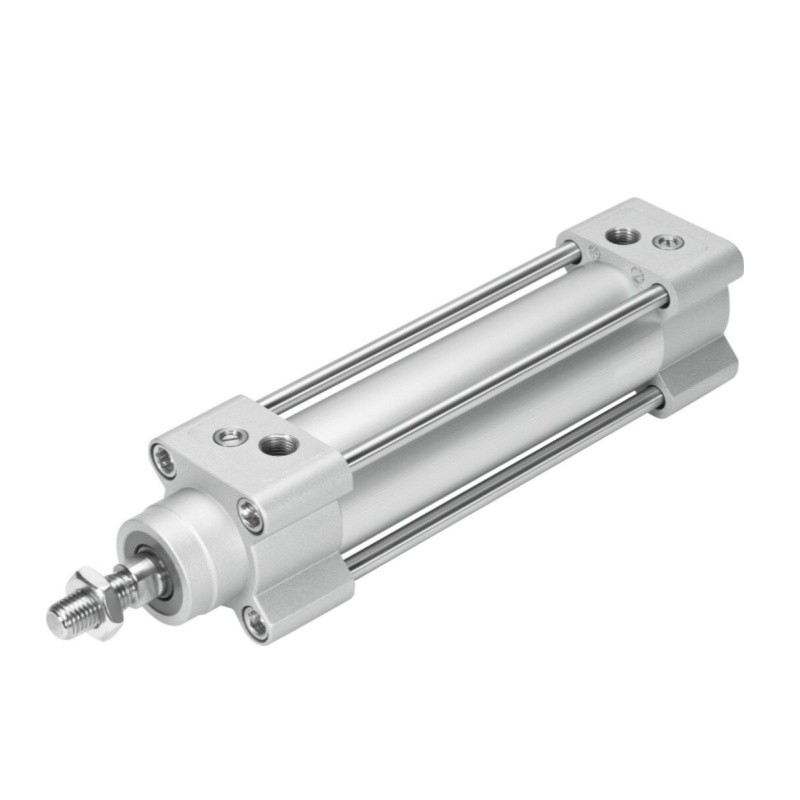

FESTO DSBG-32-200-PPVA-N3 belongs to DSBG ISO15552 standard double acting cylinder series. Bore 32mm, working stroke 200mm, PPVA means adjustable pneumatic cushion on both ends to absorb impact. Piston rod M10×1.25 external thread, air port G1/4. Built-in T-slot for mounting magnetic position sensors. Hard chrome plated piston rod, hard anodized aluminium barrel, PU/NBR sealing system. N3 version LABS(PWIS) compliant, suitable for paint workshop and lithium battery automation. Robust tie rod construction, any installation orientation, widely used for linear pushing / pulling motion.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | DSBG-32-200-PPVA-N3 |
| Order No. | 1634781 |
| Product Series | DSBG |
| Product Type | ISO 15552 Double-Acting Standard Pneumatic Cylinder |
| Operation | Double acting |
| Bore | 32 mm |
| Stroke | 200 mm |
| Piston Rod Thread | M10×1.25 external thread |
| Air Port | G1/4 |
| Cushioning | PPVA: Pneumatic adjustable cushioning at both ends |
| Theoretical Force @6bar | Advance 483 N |
| Operating Pressure | 0.6 ~ 12 bar |
| Ambient Temperature | -20 ~ +80 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4], lubricated air optional |
| Cylinder Barrel | Hard-anodized wrought aluminium alloy |
| End Caps | Coated die-cast aluminium |
| Piston Rod | High-alloy steel, hard chrome plated |
| Seal Material | TPE-U(PU) / NBR |
| Tie Rod | High-alloy steel |
| Feature | N3: PWIS / LABS compliant VDMA24364-B1/B2-L, T-slot for magnetic sensor, rugged tie rod structure, any mounting orientation |
| Mounting | Any mounting position |
| Corrosion Resistance Class | CRC2 |
| Weight | 1.38 kg |
| Certificate | CE, RoHS |
| Origin | Germany |
| Condition | New Original |
