DFS60A-BHAA65536

属性名称	属性值
Brand	SICK
Model	DFS60A-BHAA65536
Product Type	Incremental Rotary Encoder
Connector Type	M12 Straight, 8 Pin
Pin	8 Pin
Pulse Per Revolution	65536 ppr
Shaft Type	Solid shaft
Shaft Diameter	10 mm
Output Signal	Line driver (RS422)
Supply Voltage	4.75…30 V DC
Max Speed	6000 rpm
IP Rating	IP65
Housing Material	Aluminum alloy
Operating Temperature	-20℃~+70℃
Feature	65536ppr ultra-high resolution, solid shaft, M12 8pin connector, RS422 signal, high precision, shock resistant, al

INQUIRY

Product Details

Product Tags

Product Overview

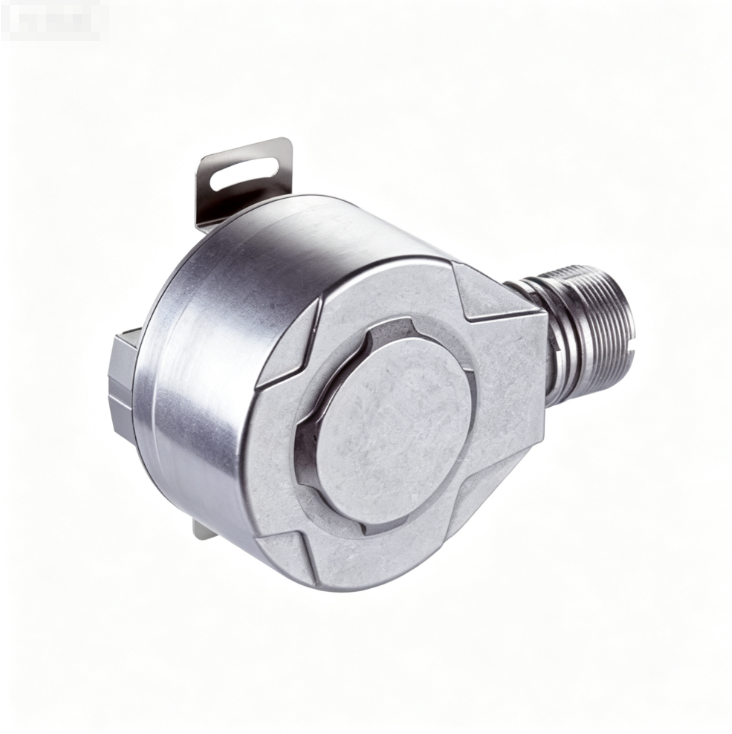

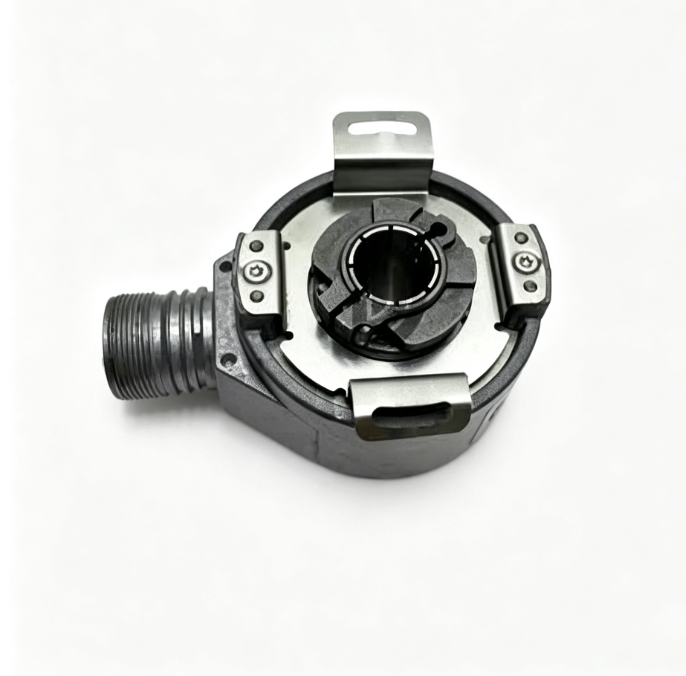

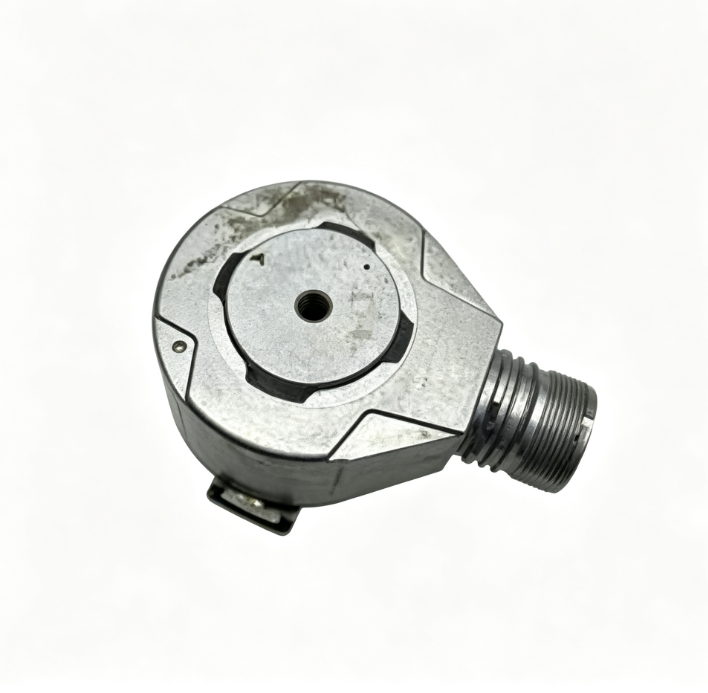

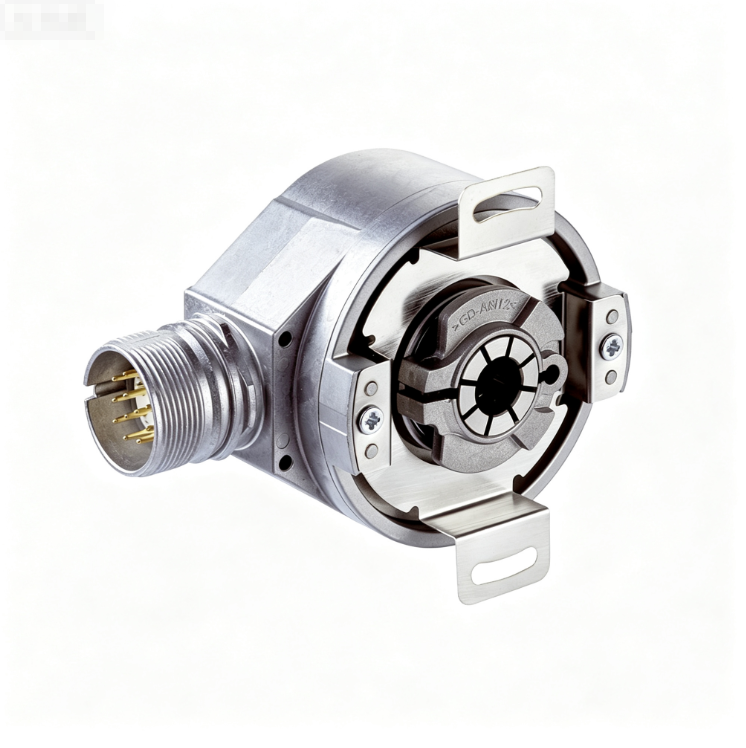

DFS60A-BHAA65536 is SICK incremental rotary encoder. It adopts ultra-high resolution of 65563 ppr，equipped with 10mm solid shaft and 8-pin M12 straight connector. It features RS422 line driver output, supply voltage 4.75~30 V DC, max rotating speed up to 6000 rpm. Aluminum alloy housing with IP65 protection grade. With excellent shock resistance and ultra-precise pulse signal output, it satisfies high accuracy speed and position feedback demands for high-end industrial automation devices.

属性名称	属性值
Brand	SICK
Model	DFS60A-BHAA65536
Product Type	Incremental Rotary Encoder
Connector Type	M12 Straight, 8 Pin
Pin	8 Pin
Pulse Per Revolution	65536 ppr
Shaft Type	Solid shaft
Shaft Diameter	10 mm
Output Signal	Line driver (RS422)
Supply Voltage	4.75…30 V DC
Max Speed	6000 rpm
IP Rating	IP65
Housing Material	Aluminum alloy
Operating Temperature	-20℃~+70℃
Feature	65536ppr ultra-high resolution, solid shaft, M12 8pin connector, RS422 signal, high precision, shock resistant, aluminum housing
Certification	CE
Condition	New Original
MOQ	1 Piece
Gross Weight	0.30 KG
Net Weight	0.25 KG
Place of Origin	Germany
