DZH-25-50-PPV-A
Product Overview
Item No: 151123 Model: DZH-25-50-PPV-A Brand: Festo Type: Flat Pneumatic Cylinder, DZH Series

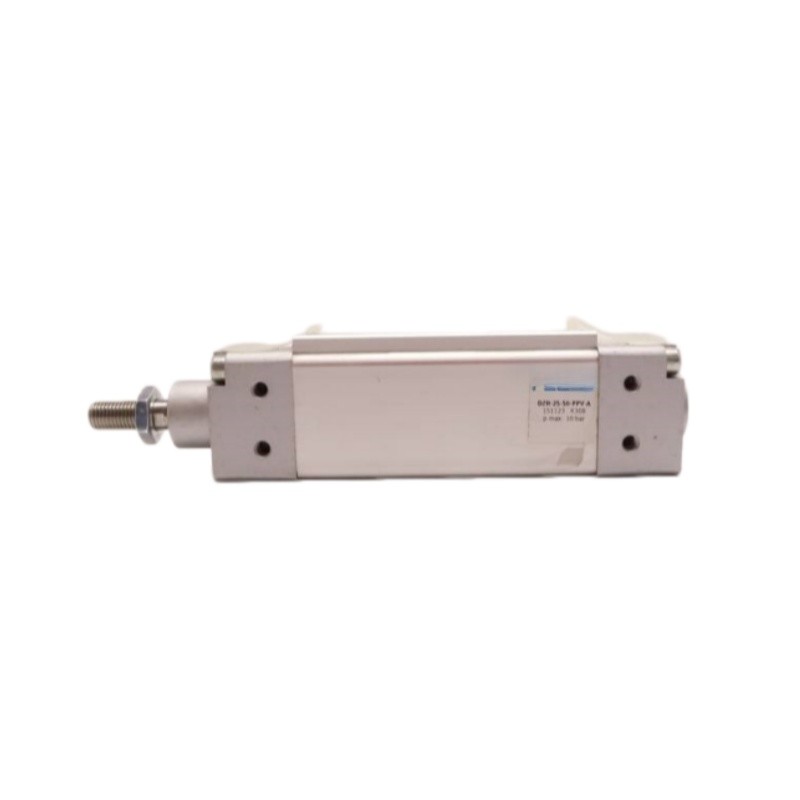

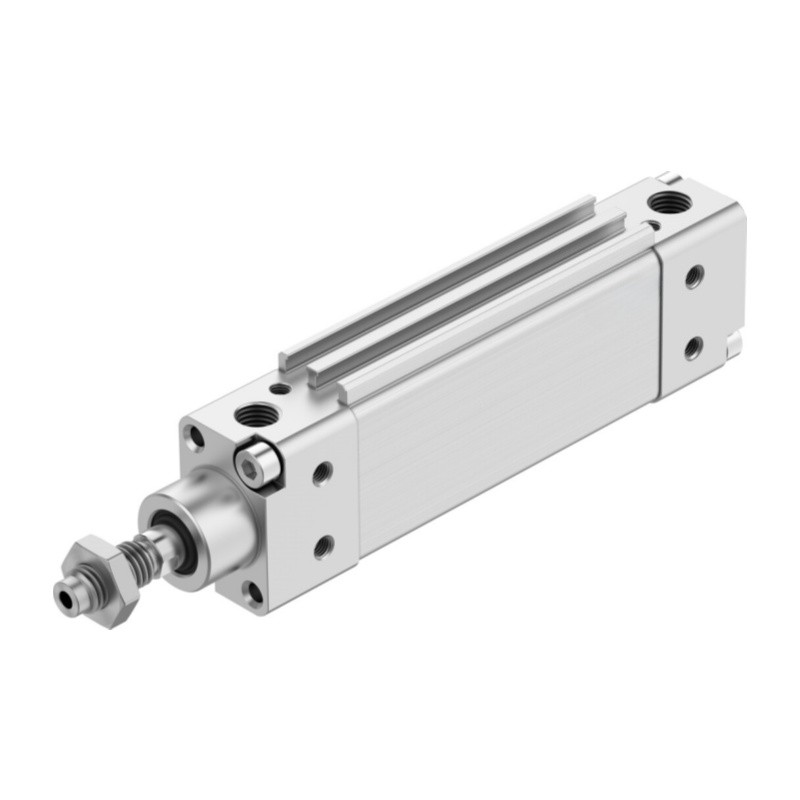

Festo DZH-25-50-PPV-A flat pneumatic cylinder, part number 151123, is a double-acting compact flat cylinder designed for limited installation space. Its unique oval piston structure provides anti-torsion performance with rotation angle limited to ±2.4°, eliminating additional anti-rotation guide structure. It has adjustable pneumatic cushioning on both ends to absorb impact and reduce vibration during reciprocating movement. The cylinder body is made of high-strength aluminium alloy with NBR seals for stable sealing performance, CRC2 corrosion resistance. It can be fitted with proximity switches to detect piston position. It is widely applied in automation equipment for clamping, pushing, lifting and other linear motion tasks, especially suitable for narrow installation space.
| 属性名称 (Key) | 属性值 (Value) |
|---|---|
| Brand | Festo |
| Model | DZH-25-50-PPV-A |
| Part No. | 151123 |
| Product Series | DZH |
| Product Type | Flat Pneumatic Cylinder / Compact Flat Cylinder |
| Product Function | Double-acting flat cylinder, oval piston anti-torsion, adjustable pneumatic cushioning at both ends |
| Bore | 25 mm |
| Stroke | 50 mm |
| Pneumatic Connection | G1/8 |
| Piston Rod Thread | M10×1.25 |
| Operating Pressure | 1 ~ 10 bar |
| Theoretical force @6bar advance | 295 N |
| Theoretical force @6bar return | 247 N |
| Operating Medium | Compressed air ISO 8573-1:2010 [7:4:4], lubricated air allowed |
| Ambient Temperature | -20 ℃ ~ +80 ℃ |
| Housing Material | Aluminium alloy |
| Seal Material | NBR |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Anti-torsion feature | Oval piston, low rotation ±2.4° |
| Corrosion Resistance Class | CRC2 |
| Mounting | Any mounting position, internal thread mounting |
| Net Weight | 330 g/pc |
| RoHS Compliance | Yes |
| Feature | Flat compact design, anti-rotation oval piston, dual adjustable air cushion, support proximity switch position detection |
| Application | Industrial automation linear actuator, clamping, pushing, lifting, confined space pneumatic motion |
