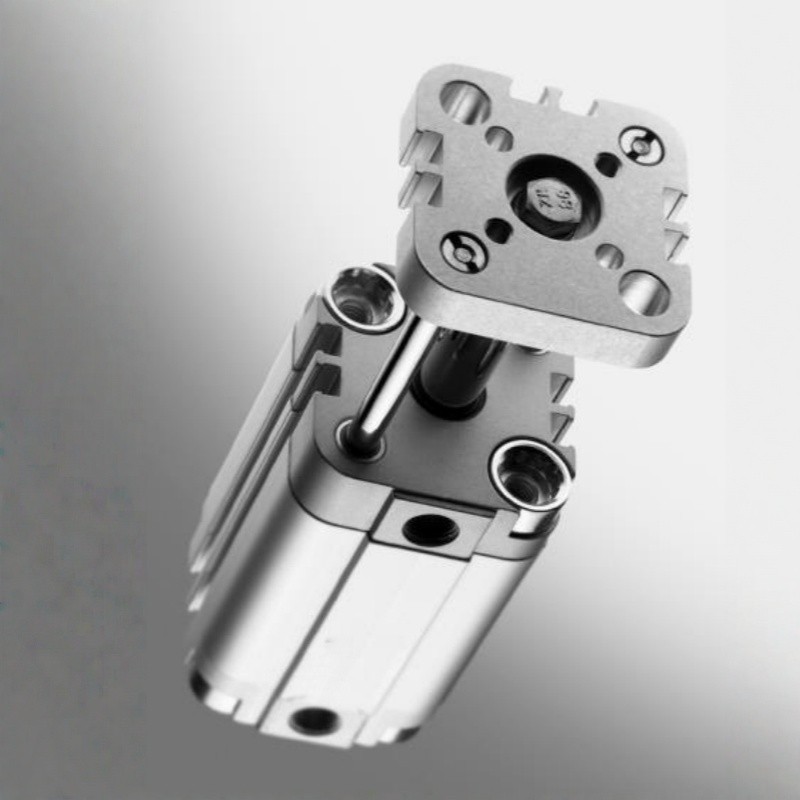

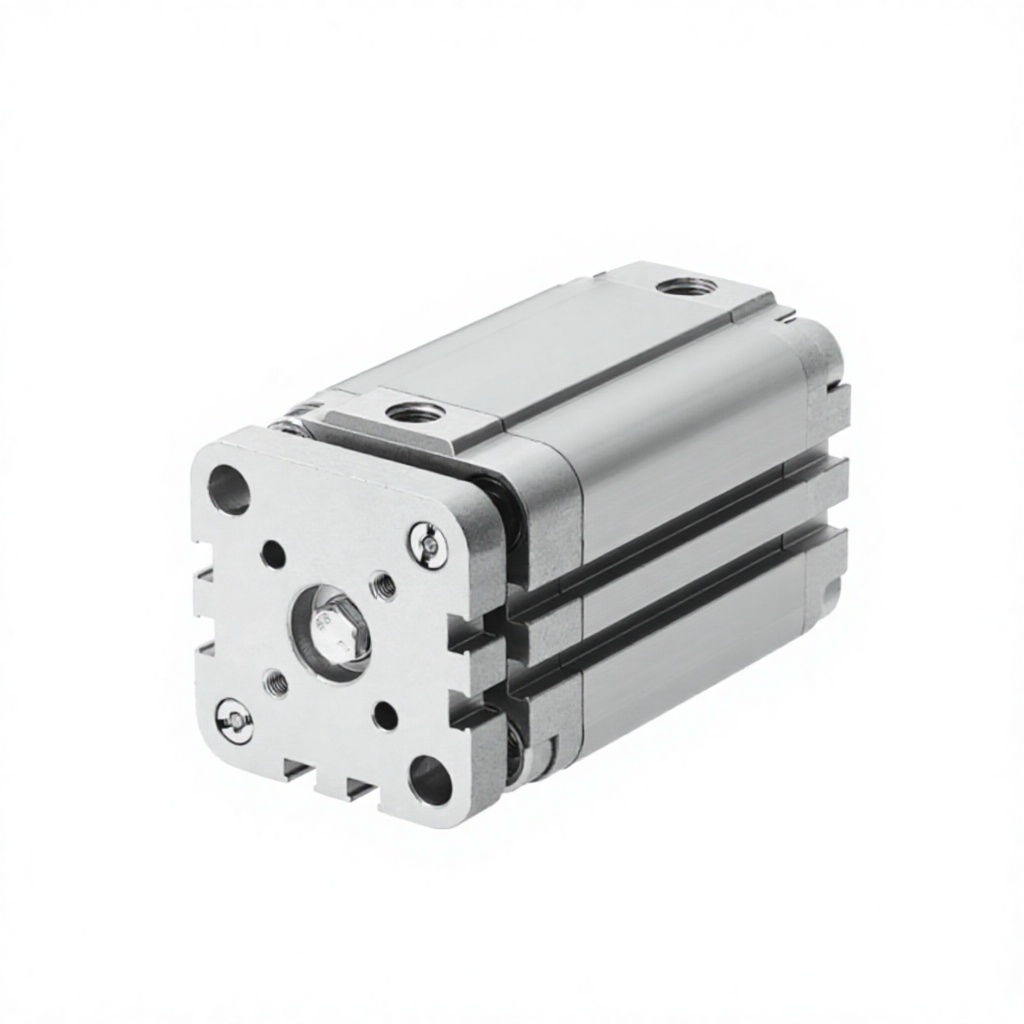

ADVUL-50-5-PA
Product Overview
ADVUL-50-5-PA, Part No.156206, belongs to Festo ADVUL series guided compact cylinder. Double acting design with integrated guide rod and yoke plate to prevent rotation. Equipped with elastic cushion rings on both ends to reduce impact. Short 5mm stroke, compact structure, support position detection by proximity switch. Widely used for clamping, pushing and positioning tasks in automation equipment
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | ADVUL-50-5-PA |
| Part No. | 156206 |
| Type | Guided compact cylinder, double-acting |
| Piston diameter | 50 mm |
| Stroke | 5 mm |
| Cushioning | Elastic cushion rings on both ends |
| Working medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Working pressure | 1 ~ 10 bar |
| Temperature range | -20 ~ 80 ℃ |
| Port size | G1/8 |
| Feature | Anti-rotation with guide rod and yoke plate, position sensing via proximity sensor |
| Corrosion resistance class | CRC2 |
| RoHS | Compliant |
