6033219

属性项	参数
Brand	SICK
Model	WTB8L-P2131
Order No.	6033219
Product Type	Background suppression Laser Photoelectric Sensor
Sensing Principle	Diffuse reflection, background suppression
Sensing Range	30 ~ 300 mm
Output Type	PNP, Light-on / Dark-on switchable
Supply Voltage	10~30V DC
Connection	M8 3-pin male connector
Housing Material	ABS Plastic
Protection Grade	IP67
Light Source	Red Laser,650nm,Class1
Size	11 × 31 × 20 mm
Response Time	≤250μs
Max Output Current	100mA
Operating Temp	-10℃

INQUIRY

Product Details

Product Tags

Product Overview

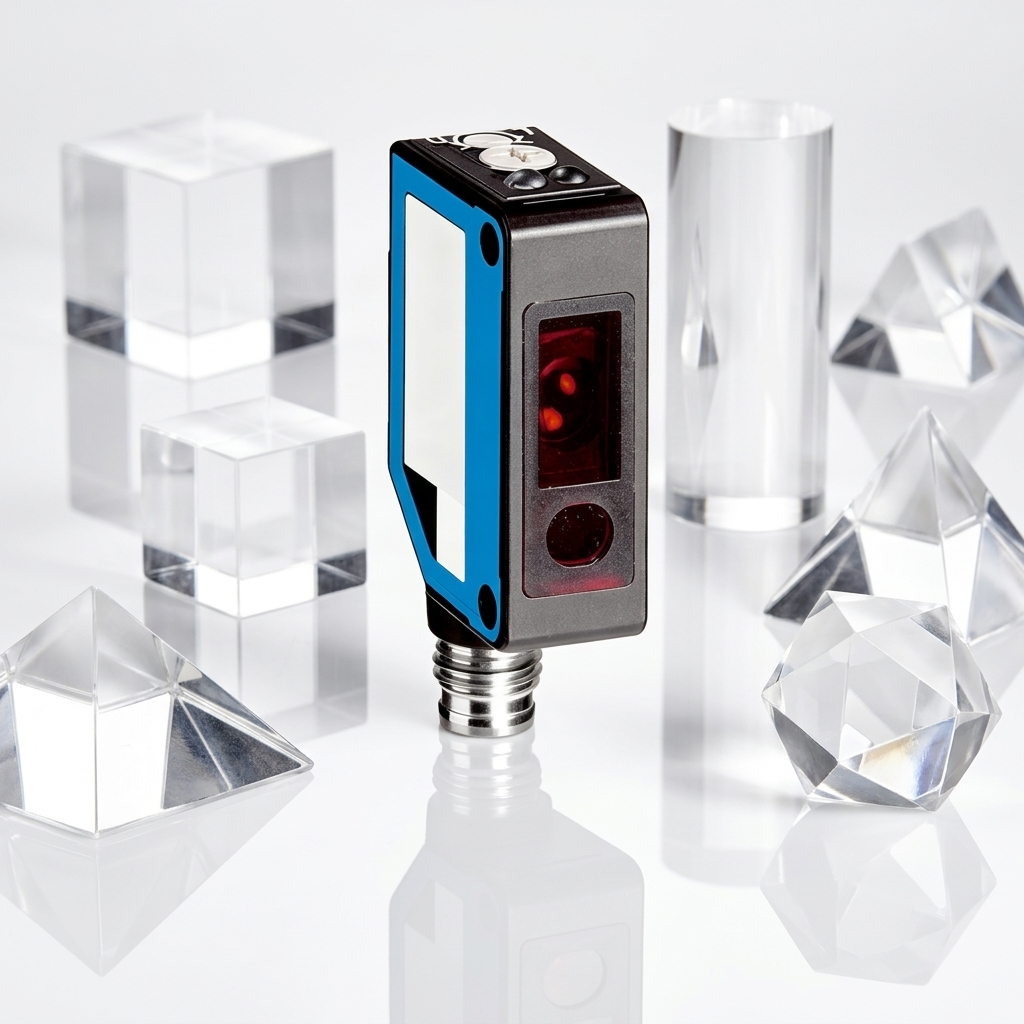

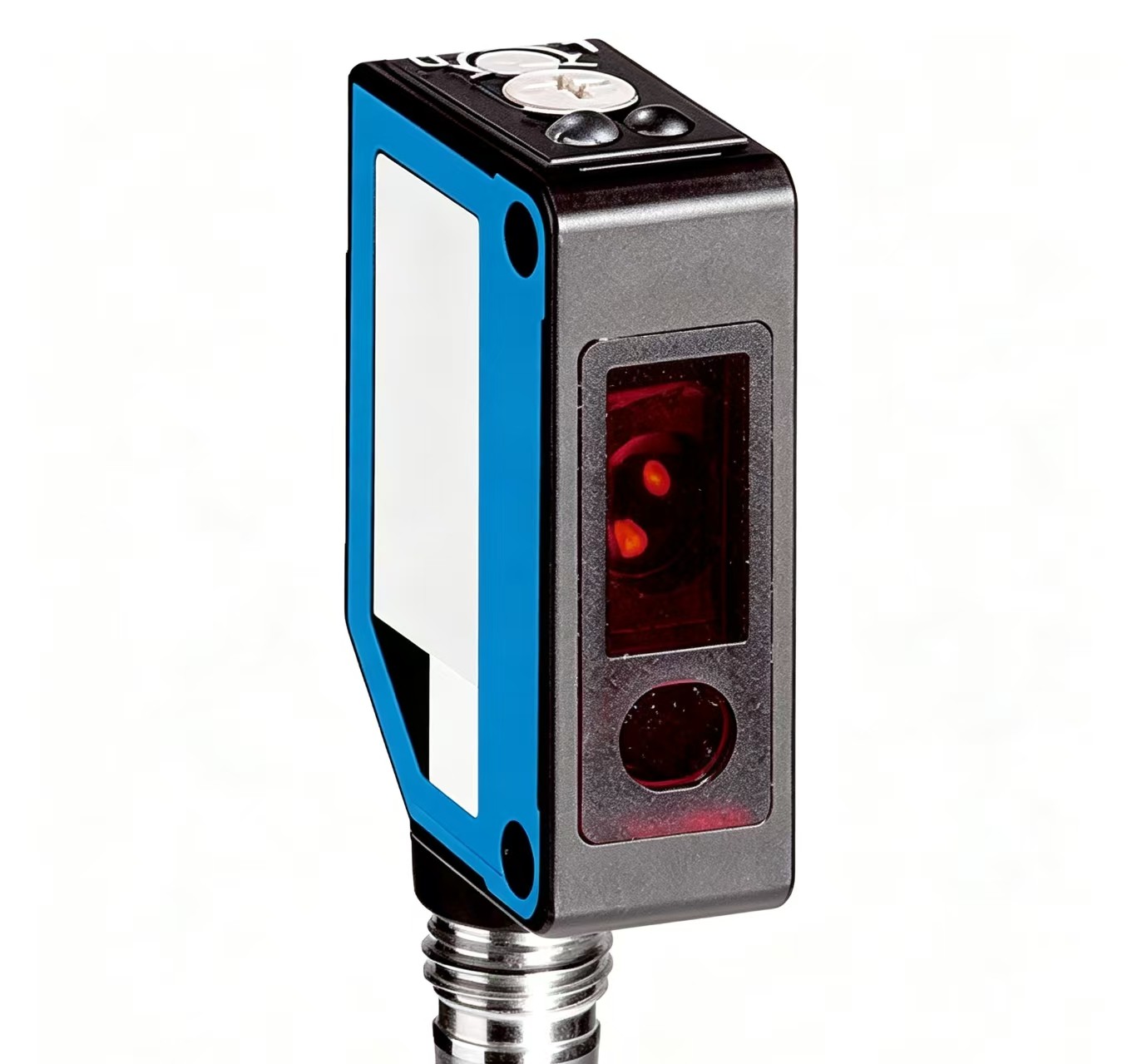

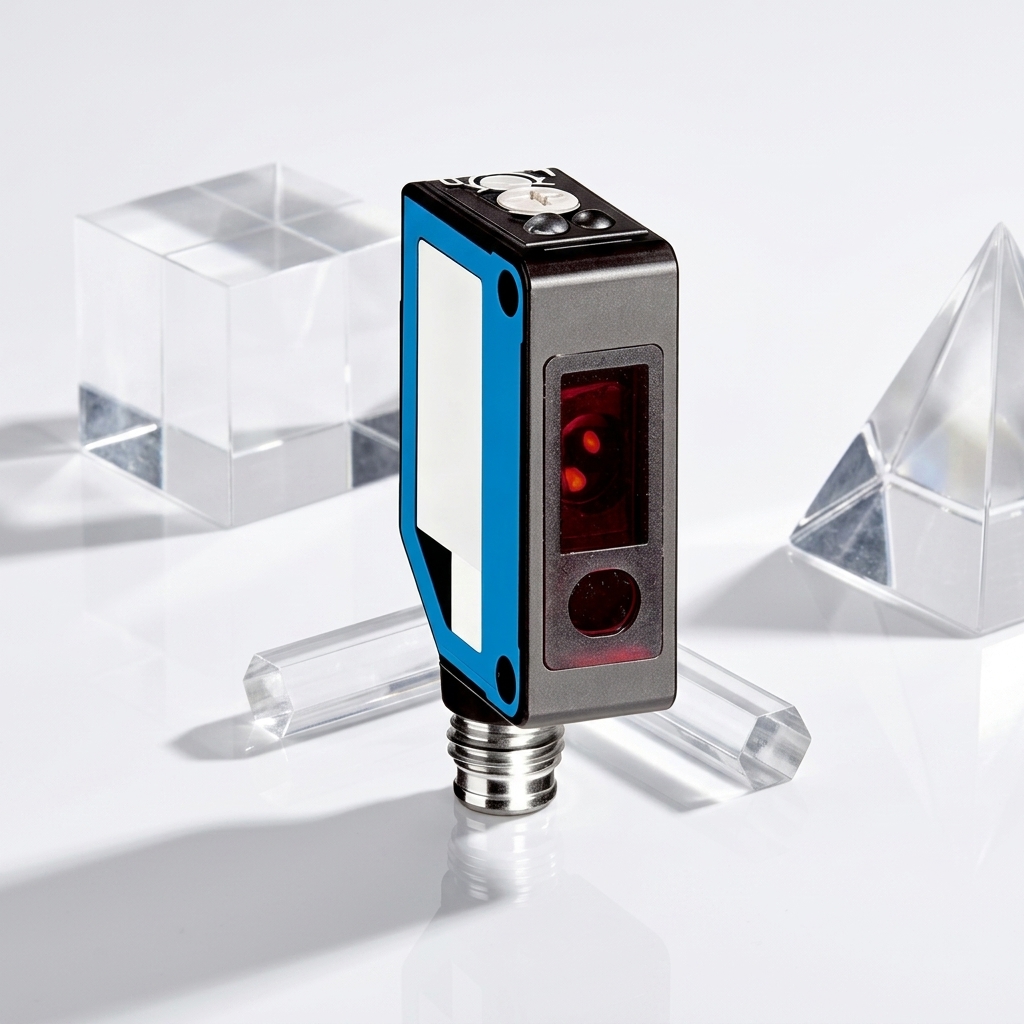

SICK WTB8L-P2131, Order No.6033219 is a diffuse laser photoelectric sensor with background suppression function. Equipped with Class1 red laser source, it can accurately detect targets while ignoring interference from background objects. It supports switchable Light-on / Dark-on modes, perfectly suited for small and high-speed moving object detection in compact installation spaces.

属性项	参数
Brand	SICK
Model	WTB8L-P2131
Order No.	6033219
Product Type	Background suppression Laser Photoelectric Sensor
Sensing Principle	Diffuse reflection, background suppression
Sensing Range	30 ~ 300 mm
Output Type	PNP, Light-on / Dark-on switchable
Supply Voltage	10~30V DC
Connection	M8 3-pin male connector
Housing Material	ABS Plastic
Protection Grade	IP67
Light Source	Red Laser,650nm,Class1
Size	11 × 31 × 20 mm
Response Time	≤250μs
Max Output Current	100mA
Operating Temp	-10℃ ~ +50℃
Net Weight	0.03kg
Gross Weight	0.06kg
Certification	CE
Condition	New Original
Application	Factory Automation, Conveyor, Packaging Machine, Small & high-speed moving object detection
