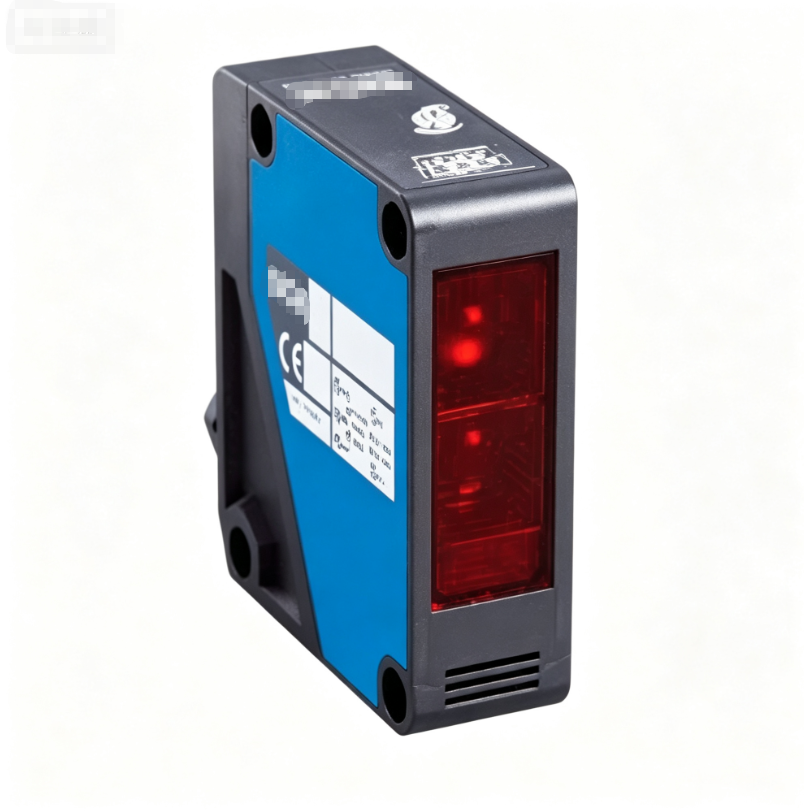

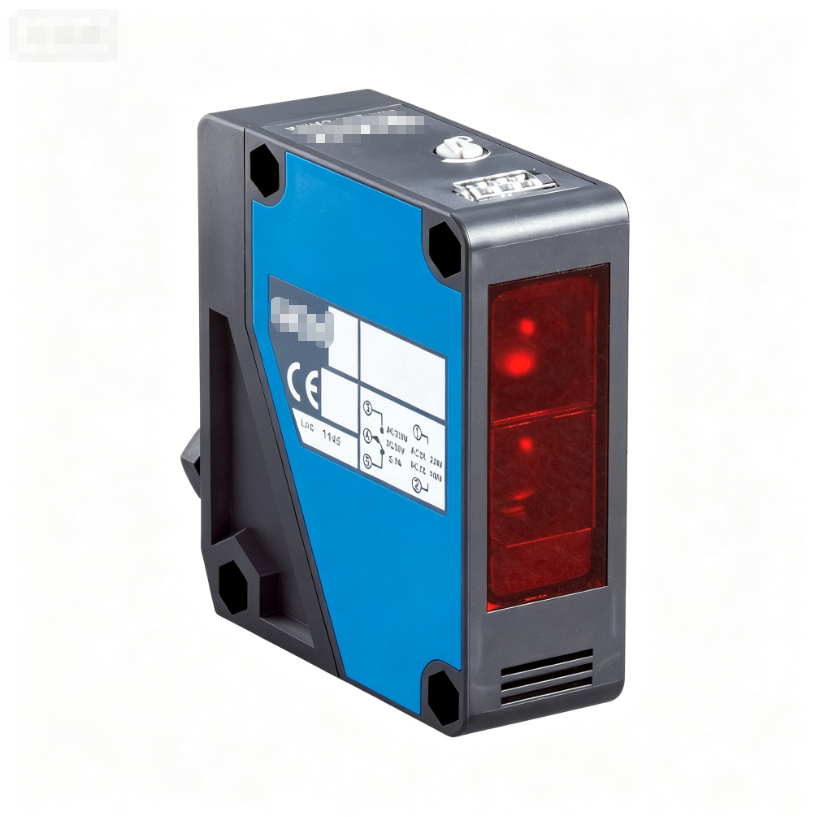

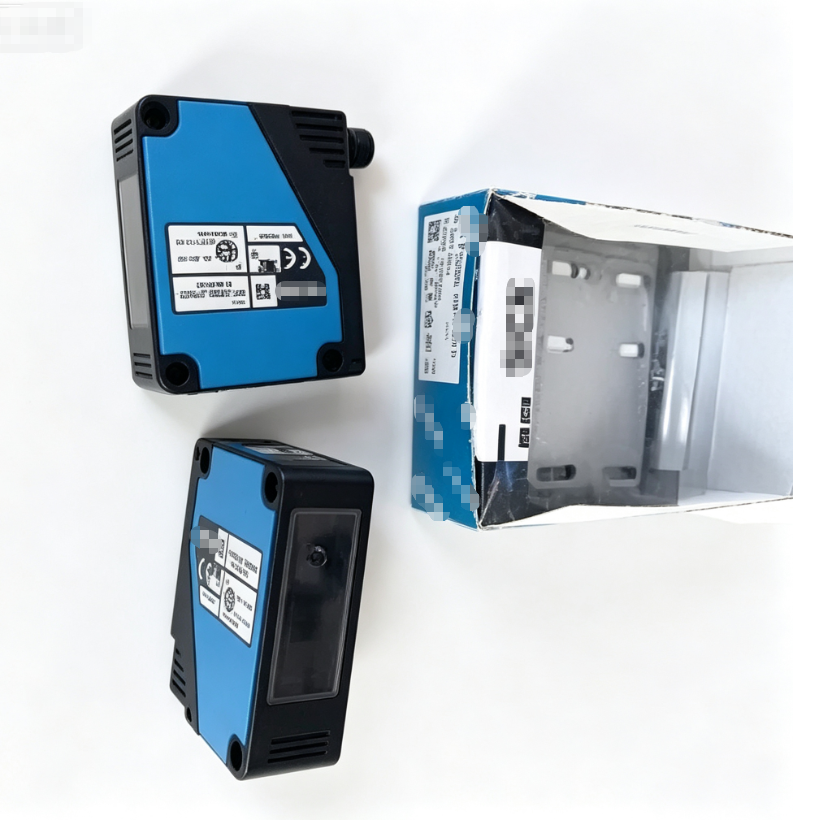

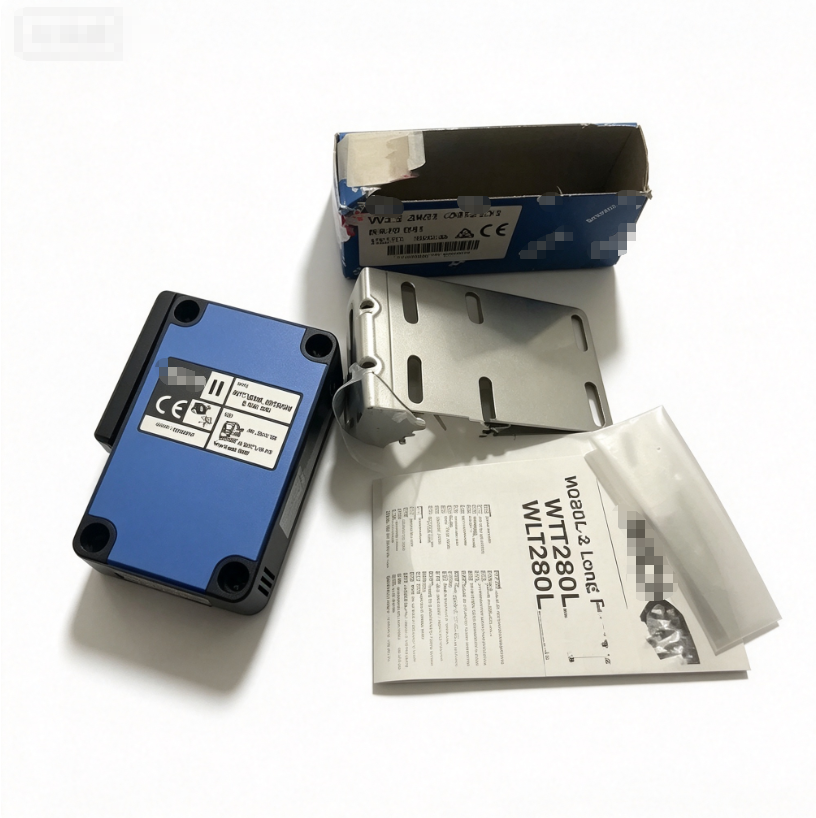

WTT280L-2P2531 6048061

属性名称	属性值
Brand	SICK
Model	WTT280L-2P2531
Order No.	6048061
Product Type	Photoelectric sensor
Series	WTT280L
Sensing principle	Diffuse reflection photoelectric sensor
Sensing range	0 mm – 2500 mm
Output	1 × PNP output
Connection	M12 4-pin connector
Supply Voltage	10 … 30 V DC
Housing Material	Plastic
IP Rating	IP67
Operating Temperature	-25℃~+55℃
Feature	WTT280L diffuse photoelectric sensor, 2.5m sensing range, PNP output,M12 4pin,IP67,background suppression,stable detection for shi

INQUIRY

Product Details

Product Tags

Product Overview

WTT280L-2P2531 is SICK WTT280L series diffuse reflection photoelectric sensor, order number 6048061. It adopts advanced background suppression technology, with a sensing range of 0 mm to 2500 mm. It is fitted with PNP switching output and M12 4-pin connector, supply voltage 10~30V DC. Plastic housing and IP67 protection class, operating temperature -25℃~+55℃. It can reliably detect shiny, dark and uneven objects, effectively avoid interference from background objects, ideal for object detection on factory automation lines.

属性名称	属性值
Brand	SICK
Model	WTT280L-2P2531
Order No.	6048061
Product Type	Photoelectric sensor
Series	WTT280L
Sensing principle	Diffuse reflection photoelectric sensor
Sensing range	0 mm – 2500 mm
Output	1 × PNP output
Connection	M12 4-pin connector
Supply Voltage	10 … 30 V DC
Housing Material	Plastic
IP Rating	IP67
Operating Temperature	-25℃~+55℃
Feature	WTT280L diffuse photoelectric sensor, 2.5m sensing range, PNP output,M12 4pin,IP67,background suppression,stable detection for shiny & dark objects
Certification	CE
Condition	New Original
MOQ	1 Piece
Gross Weight	0.13 KG
Net Weight	0.10 KG
Place of Origin	Germany
