LFR-1/4-D-MINI-MPA

属性名称	属性值
Brand	Festo
Model	LFR-1/4-D-MINI-MPA
Part No	8002301
Product Type	Filter Regulator（过滤减压阀）
Series	LFR D 系列，MINI 规格，模块宽度 40mm
Pneumatic Port	G1/4 内螺纹
Operating Pressure	0.1 ~1.6 MPa（1~16 bar）
Pressure Regulation Range	0.05 ~0.7 MPa（0.5~7 bar）
Nominal Flow Rate	1500 L/min（DIN1343）
Filtration Grade	40 µm
Condensate Volume	22 ml
Drain Type	手动旋转排水
Handle	可锁定旋转调压旋钮
Feature	带回流功能，直接作用式膜片减压阀，金属滤杯保护罩，适配 MPA 模块化气源拼接系统
Medium	压缩空气、惰性气体 ISO 8573-1:2010 [7:4:4]，可含油润滑
Ambient Temperatu

INQUIRY

Product Details

Product Tags

Product Description

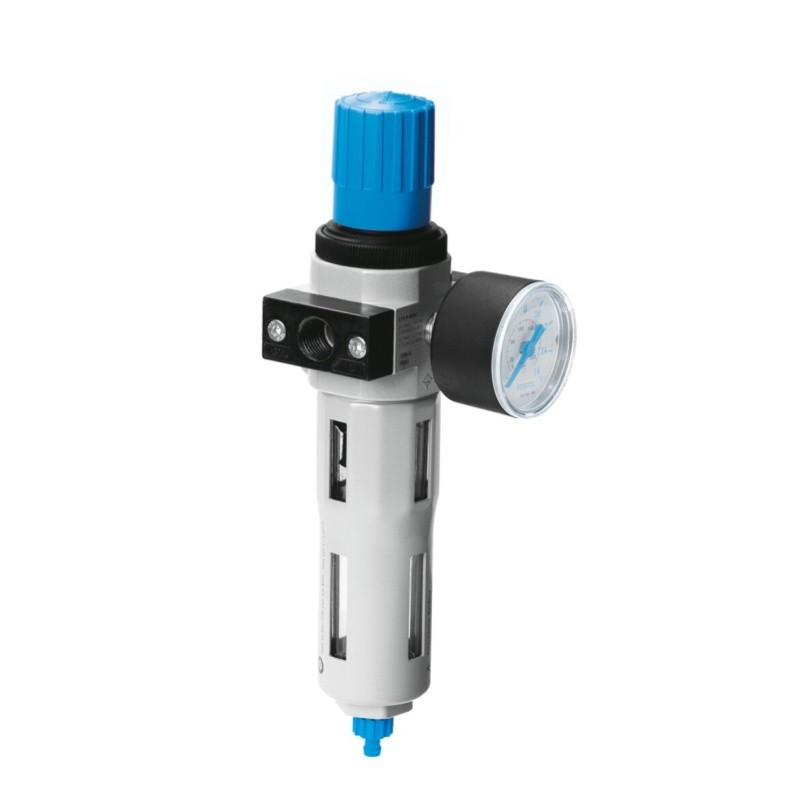

Festo LFR-1/4-D-MINI-MPA (PN:8002301) is LFR D series MINI modular filter regulator for MPA air preparation system. It integrates compressed air filter and pressure regulator in one unit.

It removes solid particles and condensate from compressed air and stabilizes downstream air pressure. Equipped with lockable rotary adjustment knob, manual condensate drain and metal bowl protective cover. Built-in return flow function for pressure relief. The MPA design allows direct stacking with other Festo MPA air components, widely used as main air treatment unit for small automation machines, valve island and cylinder control systems.

Item	Specification
Brand	Festo
Model	LFR-1/4-D-MINI-MPA
Part Number	8002301
Type	Filter Regulator
Series	LFR D MINI
Pneumatic Port	G1/4 female thread
Operating Pressure	0.1~1.6 MPa
Pressure Adjust Range	0.05~0.7 MPa
Nominal Flow	1500 L/min
Filtration	40 μm
Condensate Drain	Manual rotating
Mounting	Vertical ±5°, MPA modular stack
Ambient Temp	-10 ~ +60 ℃
Weight	460 g
Material	Aluminium housing, metal bowl guard, NBR seal
Corrosion Class	CRC2
Standard	LABS, RoHS, CE
