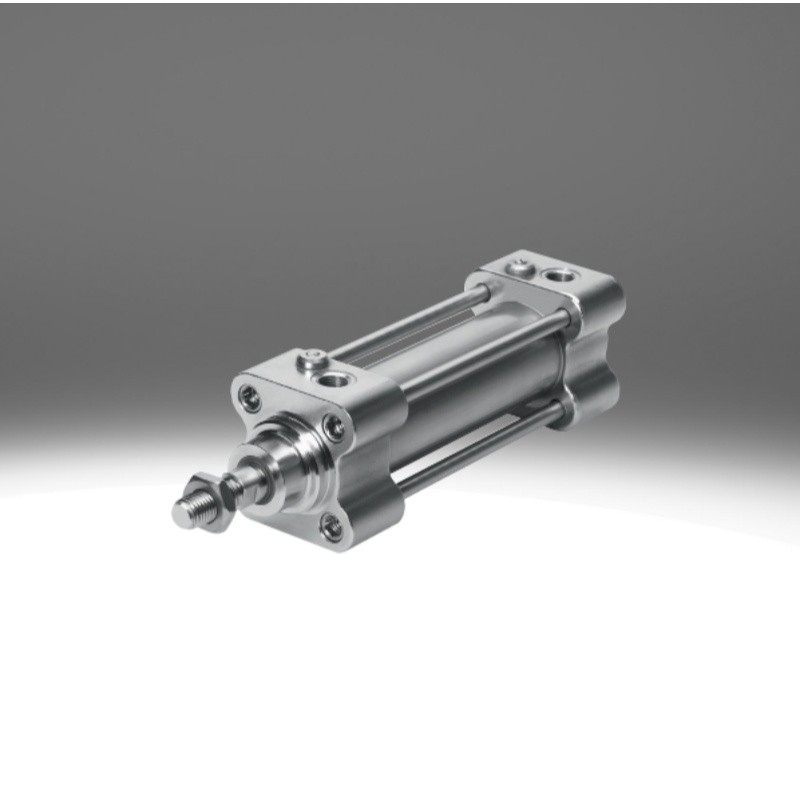

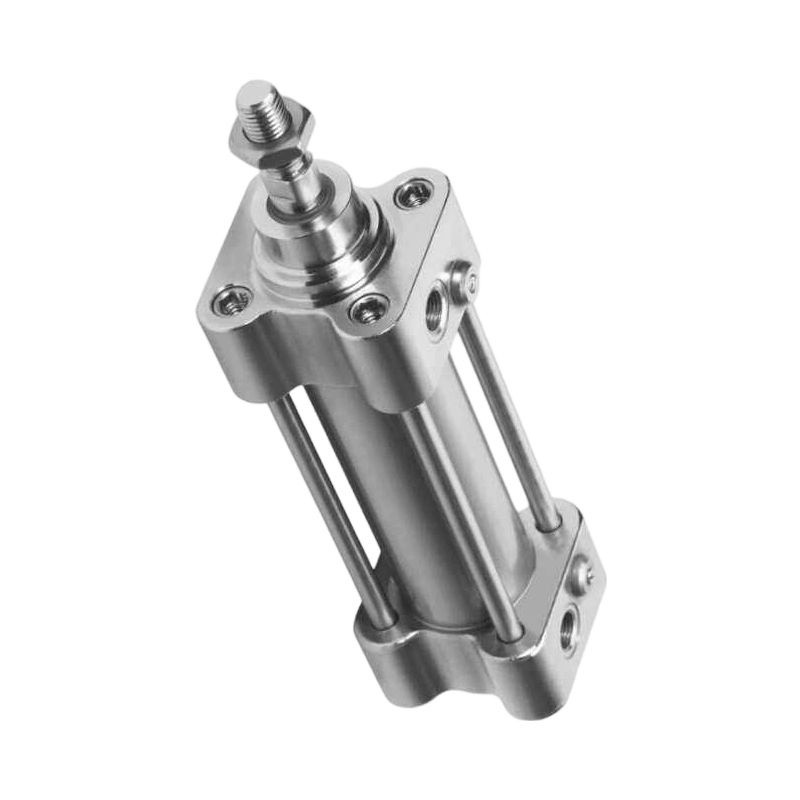

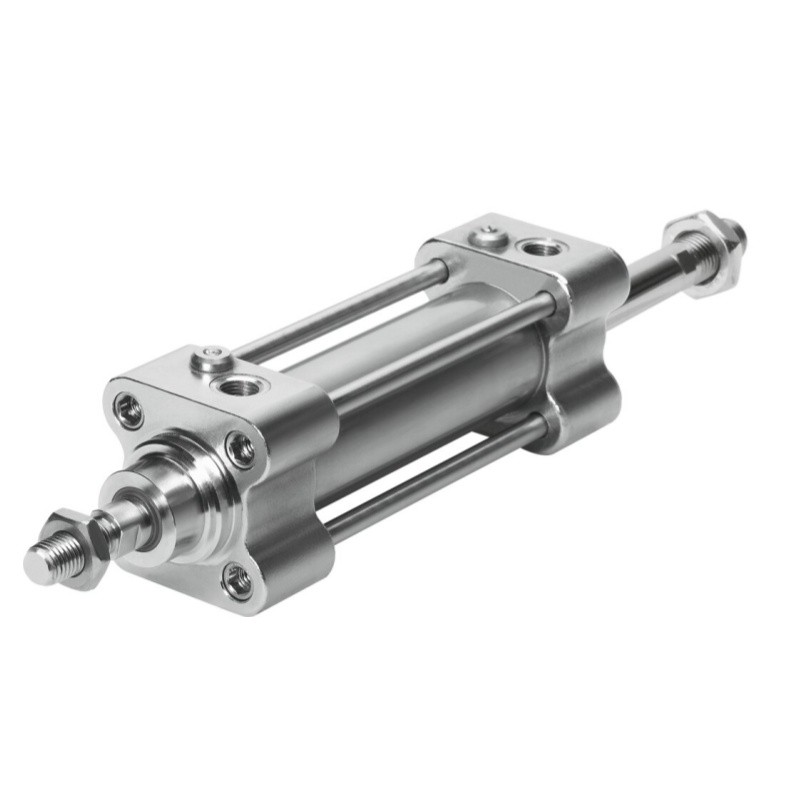

CRDNG-63-300-PPV-A-S2
Product Overview
FESTO CRDNG-63-300-PPV-A-S2 belongs to CRDNG corrosion-resistant tie rod cylinder series, conforming to ISO15552 standard. Double acting design, bore 63mm, stroke 300mm, piston rod M16×1.5 male thread. S2 stainless steel corrosion resistant version, suitable for corrosive and wet working conditions. PPV adjustable pneumatic cushioning at both ends to reduce impact. Built-in piston magnet for proximity switch position feedback, easy-to-clean washable housing, G3/8 air port, can be mounted at any orientation, widely used in food, chemical and wet industrial automation equipment.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | CRDNG-63-300-PPV-A-S2 |
| Product Series | CRDNG |
| Product Type | Corrosion Resistant ISO Tie Rod Pneumatic Cylinder |
| Action Type | Double-acting |
| Piston Diameter | 63 mm |
| Stroke | 300 mm |
| Standard | ISO 15552 (VDMA24652, ISO6431) |
| Piston Rod Thread | M16×1.5 Male thread |
| Pneumatic Port | G3/8 |
| Cushioning | PPV, adjustable pneumatic cushion at both ends |
| Variant | S2: Corrosion-resistant stainless steel version |
| Operating Pressure | 0.6 ~ 10 bar |
| Theoretical Force @6bar | Advance:1870 N, Return:1682 N |
| Ambient Temperature | -20 ~ +80 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Barrel & End Cap | Stainless steel / Corrosion resistant alloy |
| Piston Rod | High alloy stainless steel |
| Seal Material | NBR |
| Feature | Built-in magnet for proximity sensor, washable easy-clean design |
| Mounting | Any mounting position, install via cylinder accessories |
| Corrosion Resistance Class | CRC 4 |
| Certificate | RoHS, CE |
| Origin | Germany |
| Condition | New Original |
