ADVU-16-25-P-A
Product Overview

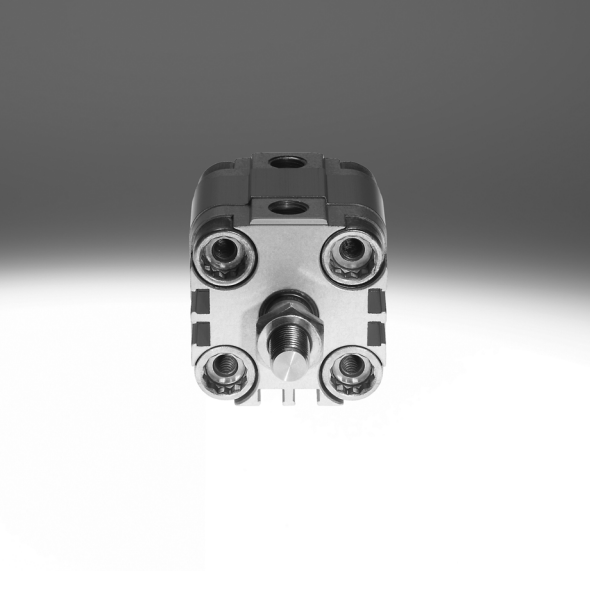

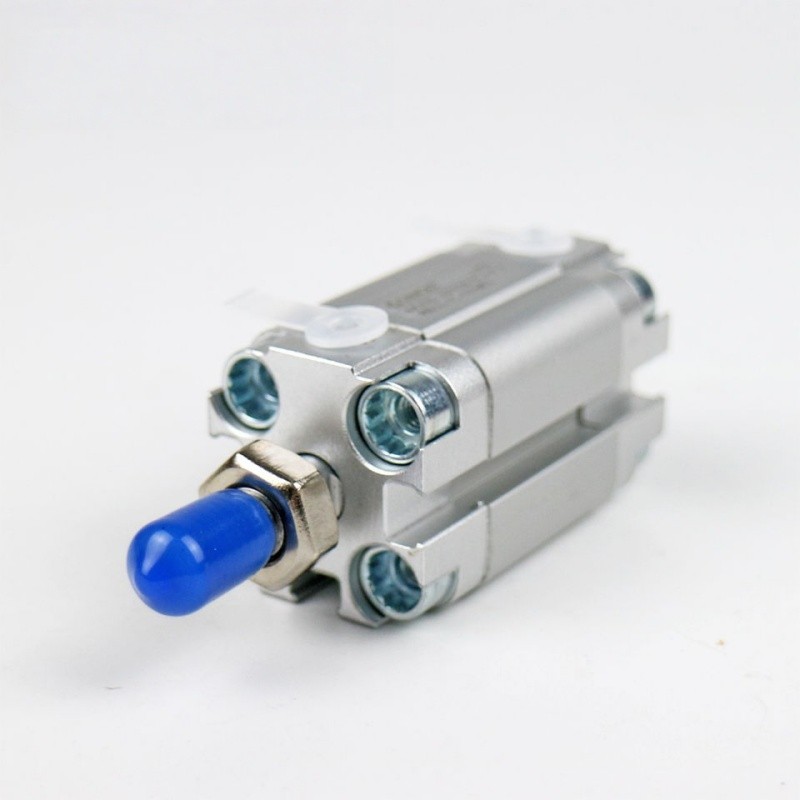

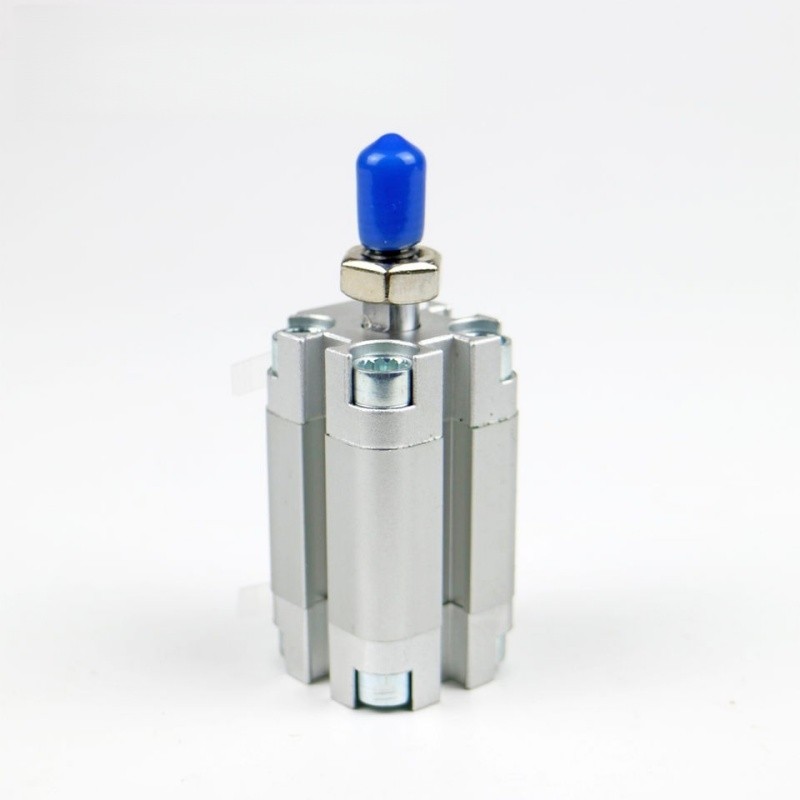

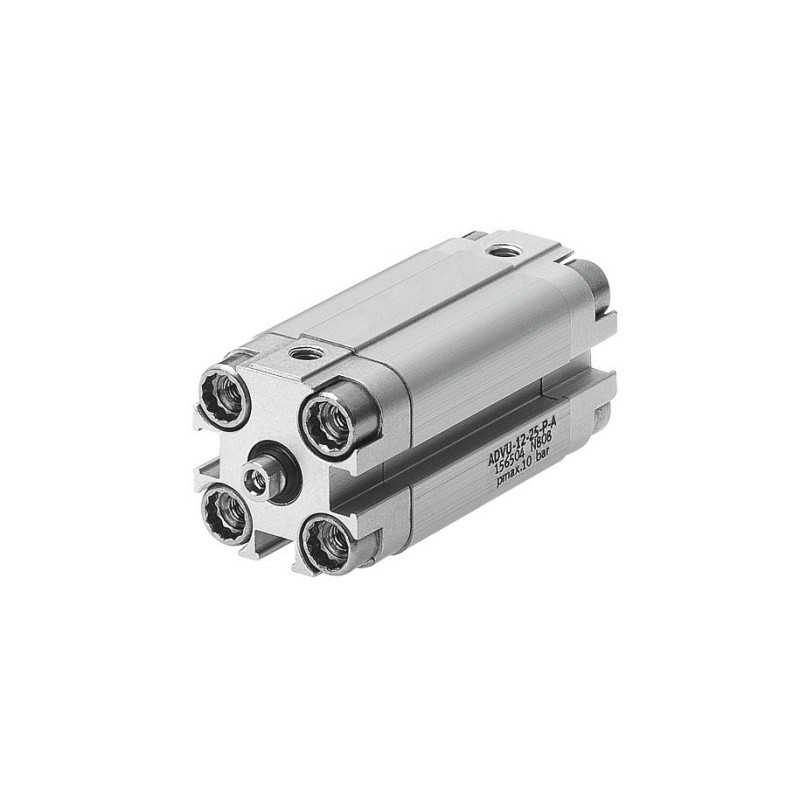

ADVU-16-25-P-A (Part No.156511) is Festo ADVU series compact double-acting pneumatic cylinder. It features 16mm bore size and 25mm stroke, equipped with female thread piston rod and built-in magnet for position sensing. Adopts high-strength wrought aluminium alloy barrel and high-alloy stainless steel piston rod, with elastic buffer at both ends for stable operation. Working pressure ranges from 1.2 to 10 bar, temperature range -20℃ to 80℃. Compact, space-saving structure with CRC 2 corrosion resistance, widely applied for linear driving in industrial automation systems.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | ADVU-16-25-P-A |
| MPN | 156511 |
| Product Type | Compact Pneumatic Cylinder |
| Series | ADVU Series |
| Action Type | Double-acting |
| Bore Size | 16 mm |
| Stroke | 25 mm |
| Piston Rod Thread | Female thread |
| Working Medium | Compressed air |
| Working Pressure | 1.2 ~ 10 bar |
| Ambient Temperature | -20 ~ 80 ℃ |
| Barrel Material | Wrought Aluminium Alloy |
| Piston Rod Material | High-alloy Stainless Steel |
| Buffer | Elastic cushion at both ends |
| Feature | With magnet for position sensing, compact structure |
| Corrosion Resistance Class | CRC 2 |
| Application | Industrial automation pneumatic system |
