CPV10-M1H-2X3-GLS-M7
Product Overview

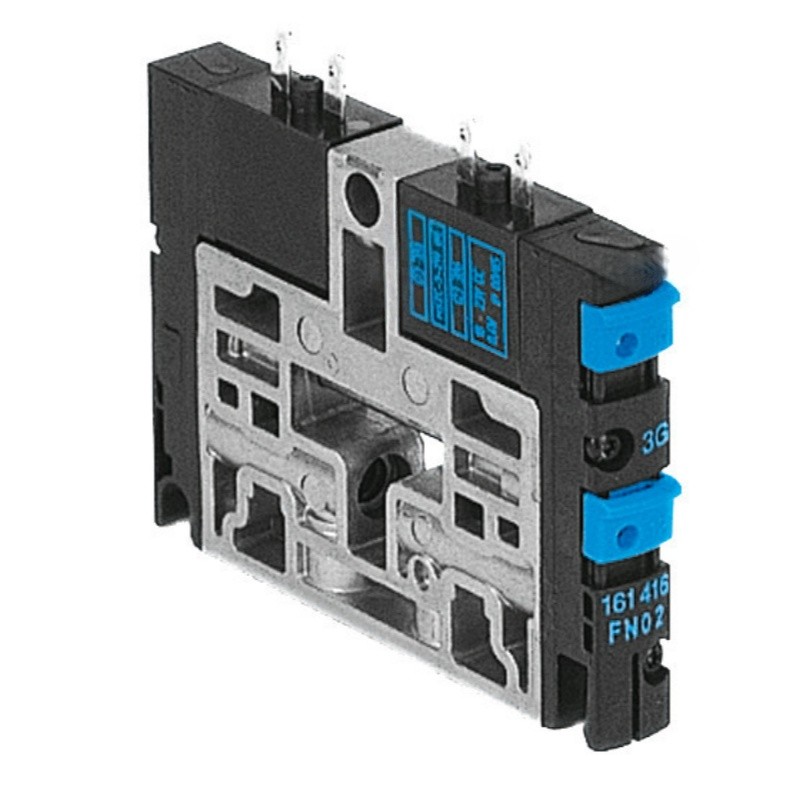

Festo CPV10-M1H-2X3-GLS-M7 (Part No.161416) is a plug-in solenoid valve cartridge belonging to CPV10 valve island series. It is 2x3/2-way normally closed monostable pilot operated valve, specially designed for modular valve terminal assembly, compact structure, easy replacement and maintenance for automated pneumatic systems.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | CPV10-M1H-2X3-GLS-M7 |
| Part Number | 161416 |
| Product Type | Solenoid Valve / Valve Island Cartridge |
| Series | CPV10 Series |
| Valve Function | 2x3/2-way, closed, monostable |
| Valve Size | 10 mm |
| Rated Flow | 400 l/min |
| Nominal Width | 4 mm |
| Operating Voltage | 24V DC |
| Operating Pressure | -0.9 ~ 10 bar |
| Pilot Pressure | 3 ~ 8 bar |
| Pneumatic Working Port | M7 |
| Control Type | Pilot operated |
| Reset Type | Pneumatic spring |
| Exhaust | Non-throttleable |
| Manual Override | Detenting & Non-detenting |
| Protection Class | IP65 |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Ambient Temperature | -5 ~ +50 ℃ |
| Medium Temperature | -5 ~ +50 ℃ |
| Housing Material | Die-cast aluminium, POM, PPS, steel |
| Seal Material | HNBR / NBR |
| Weight | 70 g |
| Mounting | Any mounting position, valve island assembly |
| CRC Class | CRC 2 |
| LABS(PWIS) | VDMA24364-B1/B2-L |
| Certification | CE, UKCA |
| RoHS | Compliant |
| Original/New | New Original |
