NECB-M12G5-C2
Product Overview
Item No: 8162291 Model: NECB-M12G5-C2 Brand: Festo Product Type: M12 Circular Connector

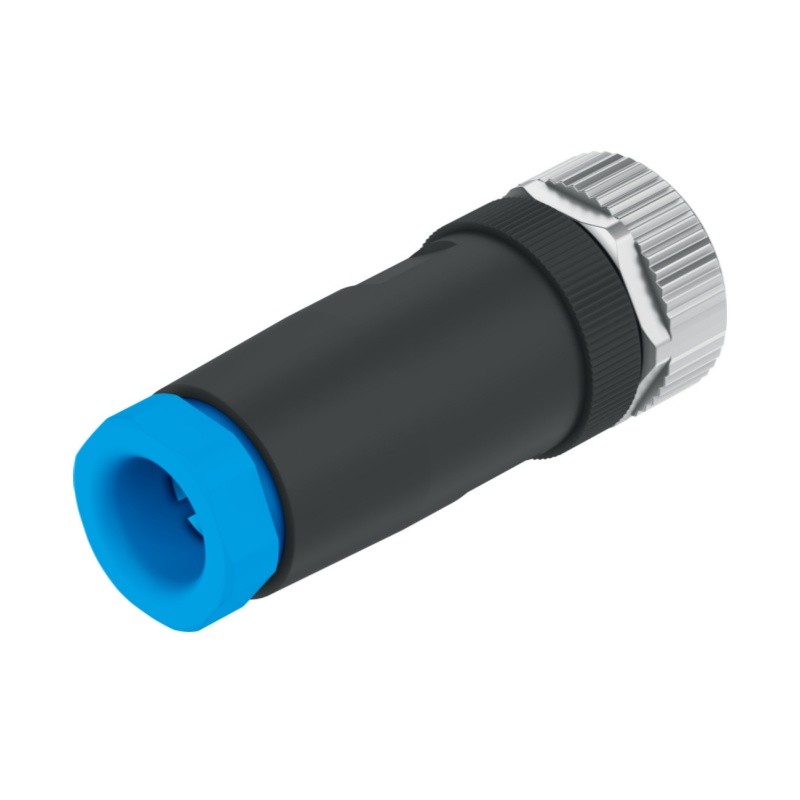

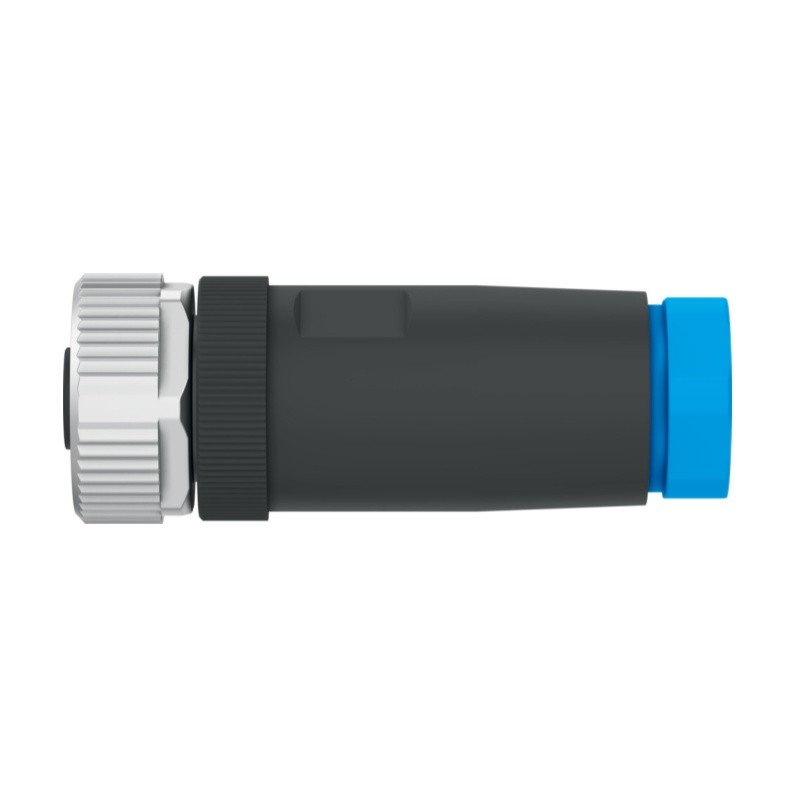

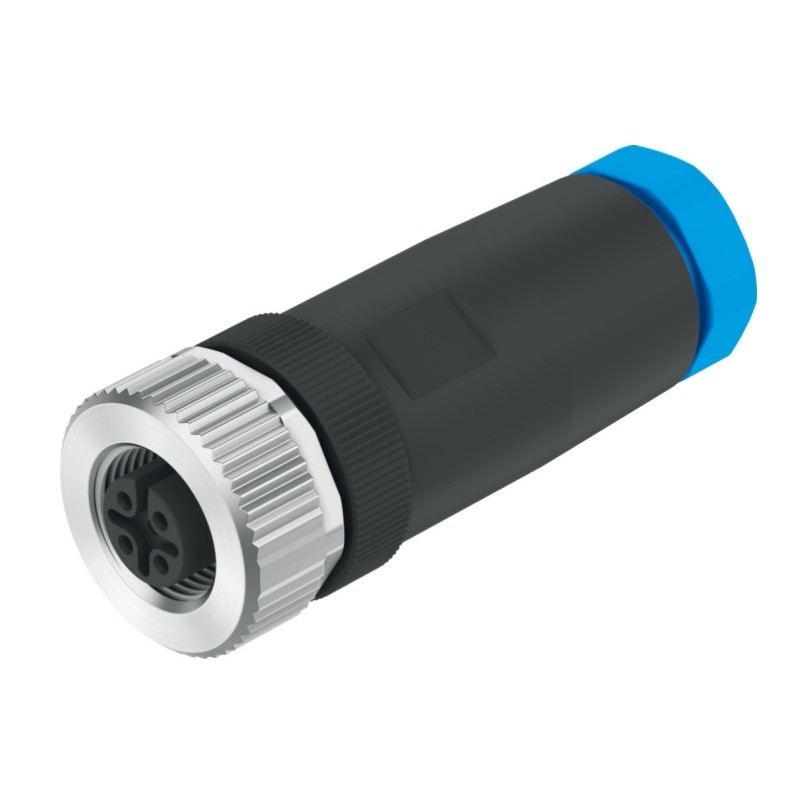

Festo NECB-M12G5-C2 circular connector belongs to NECB series, straight type, 5 pin A-coded. It is designed for field wiring of sensors, solenoid valves and other automation components. PA66-GF30 reinforced plastic housing together with FPM seal ensures excellent mechanical strength and sealing performance, reaching IP67 protection grade, effectively preventing dust and water ingress. The connector supports rated current up to 4A, suitable for signal and power transmission of pneumatic and sensor systems. Easy to install and wire, stable electrical contact, wide working temperature range, ideal for industrial automation, packaging machinery and pneumatic control systems.
| 属性 Key | 属性 Value |
|---|---|
| Brand | Festo |
| Model | NECB-M12G5-C2 |
| Part No. | 8162291 |
| Product Type | M12 Socket Connector |
| Series | NECB |
| Coding | A-coded |
| Pin Count | 5 Pin |
| Connection Type | Straight |
| Protection Class | IP65, IP67 |
| Rated Current | 4A |
| Operating Voltage | DC 0~60V, AC 0~48V |
| Material | PA66-GF30 Housing, FPM Seal |
| Ambient Temperature | -25 ~ +90℃ |
| Weight | 0.03 kg |
| Condition | New Original |
| Application | Pneumatic Sensor & Solenoid Valve Wiring |
