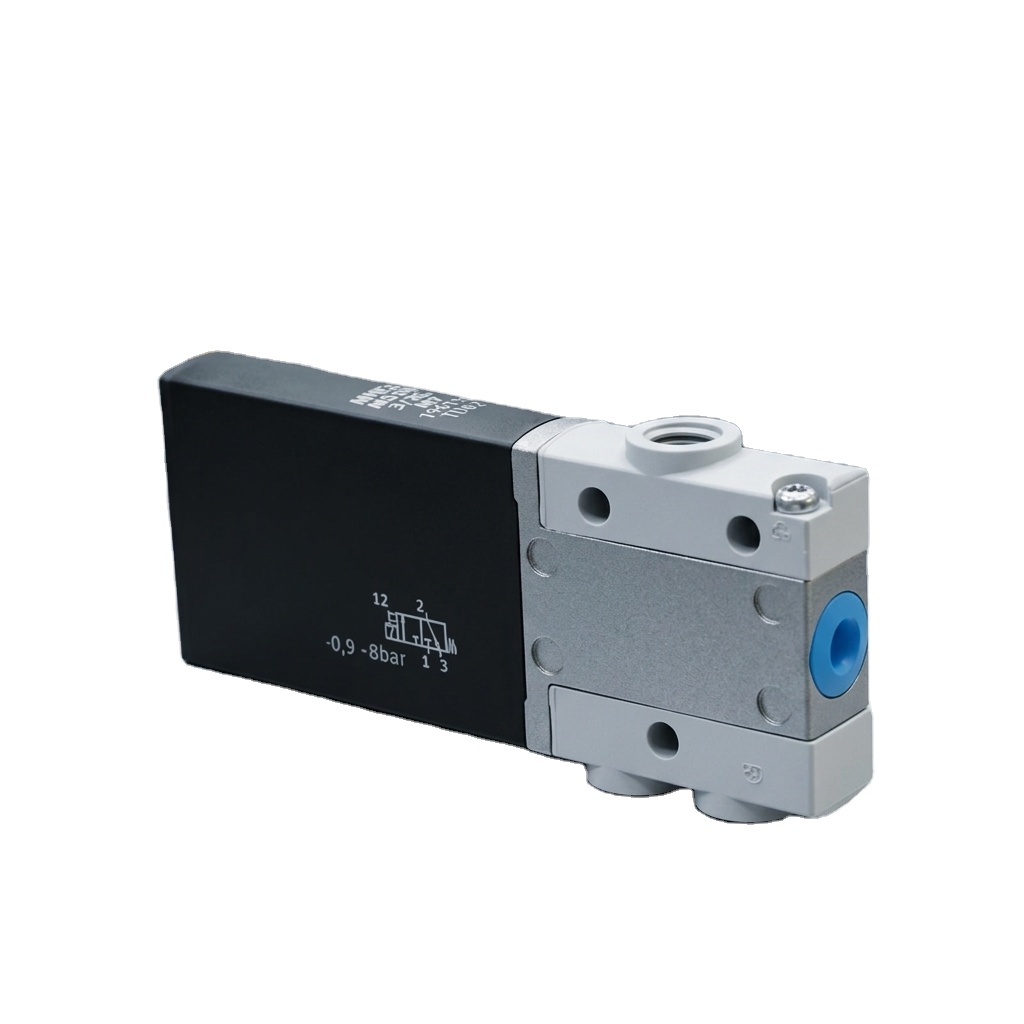

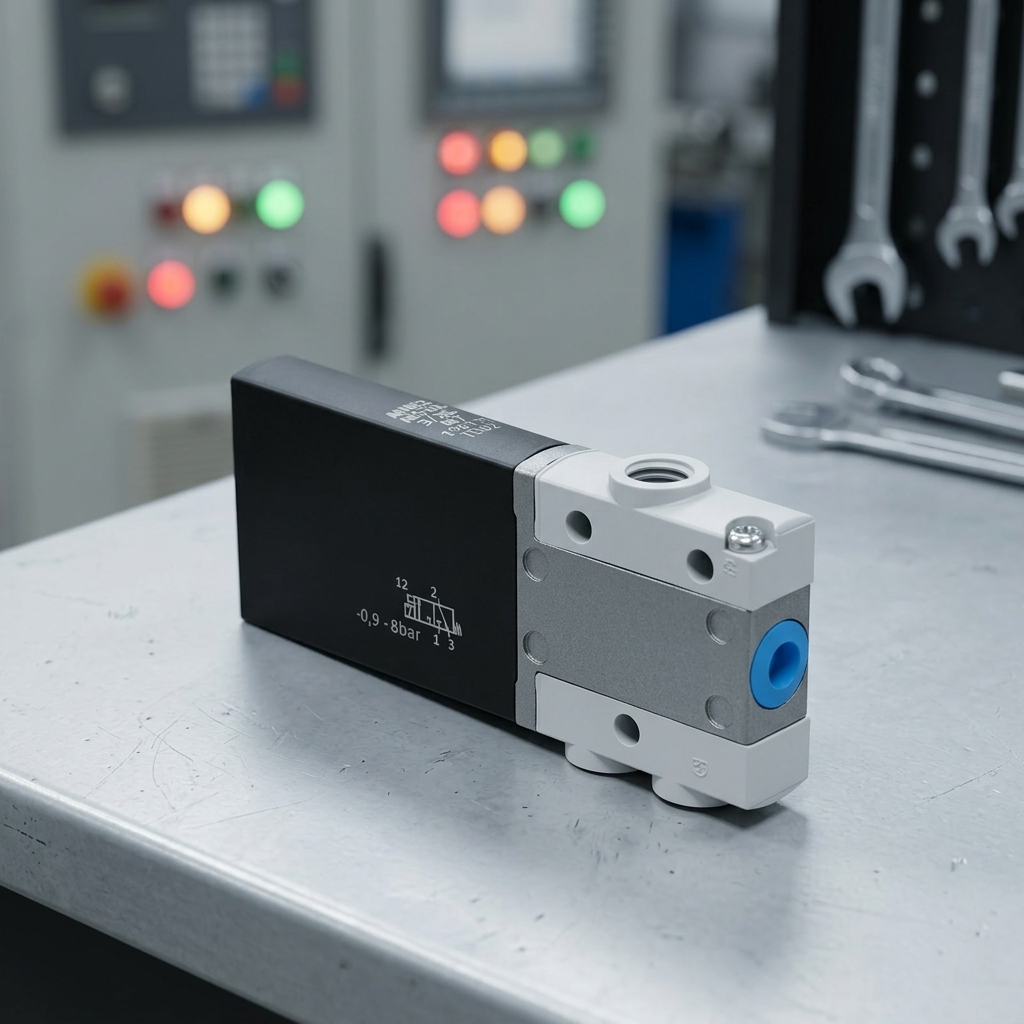

MHE2-MS1H-3/2G-M7
Product Overview
Item No: 196131 Model: MHE2-MS1H-3/2G-M7 Brand: Festo Type: Miniature High-speed Solenoid Valve, MHE2 Series
Festo MHE2-MS1H-3/2G-M7 is a high-performance miniature solenoid valve designed for micro pneumatic control applications. This 3/2-way monostable normally closed valve features ultra-compact size with only 10mm installation width, perfectly suited for high-density modular pneumatic systems. It supports both vacuum (-0.9 bar) and positive pressure (8 bar) operation with a stable nominal flow of 100 l/min, delivering fast and precise switching action. The poppet valve structure with spring reset guarantees reliable and repeatable performance during long-term continuous operation. Built with lightweight polymer housing and durable FKM seals, the valve features excellent wear resistance and temperature stability. Simple M7 threaded connection enables quick assembly and replacement. It is widely applied in automated machinery, micro clamping systems, laboratory equipment and precision pneumatic actuation control.
| 属性 Key | 属性 Value |
|---|---|
| Brand | Festo |
| Model | MHE2-MS1H-3/2G-M7 |
| Part No. | 196131 |
| Product Type | Mini Solenoid Valve |
| Series | MHE2 |
| Valve Function | 3/2 Way Monostable |
| Port Size | M7 |
| Operating Pressure | 0.3 ~ 8 bar |
| Medium | Compressed Air |
| Housing Material | Polymer |
| Seal Material | FKM |
| Ambient Temperature | -10 ~ +50℃ |
| Protection Class | IP40 |
| Weight | 0.04 kg |
| Feature | Compact, high speed response |
| Condition | New Original |
| Application | Pneumatic automation, small actuator control |
