WTB12F-1H161A20A00ZDZZZZZZZZZ1
Product Details

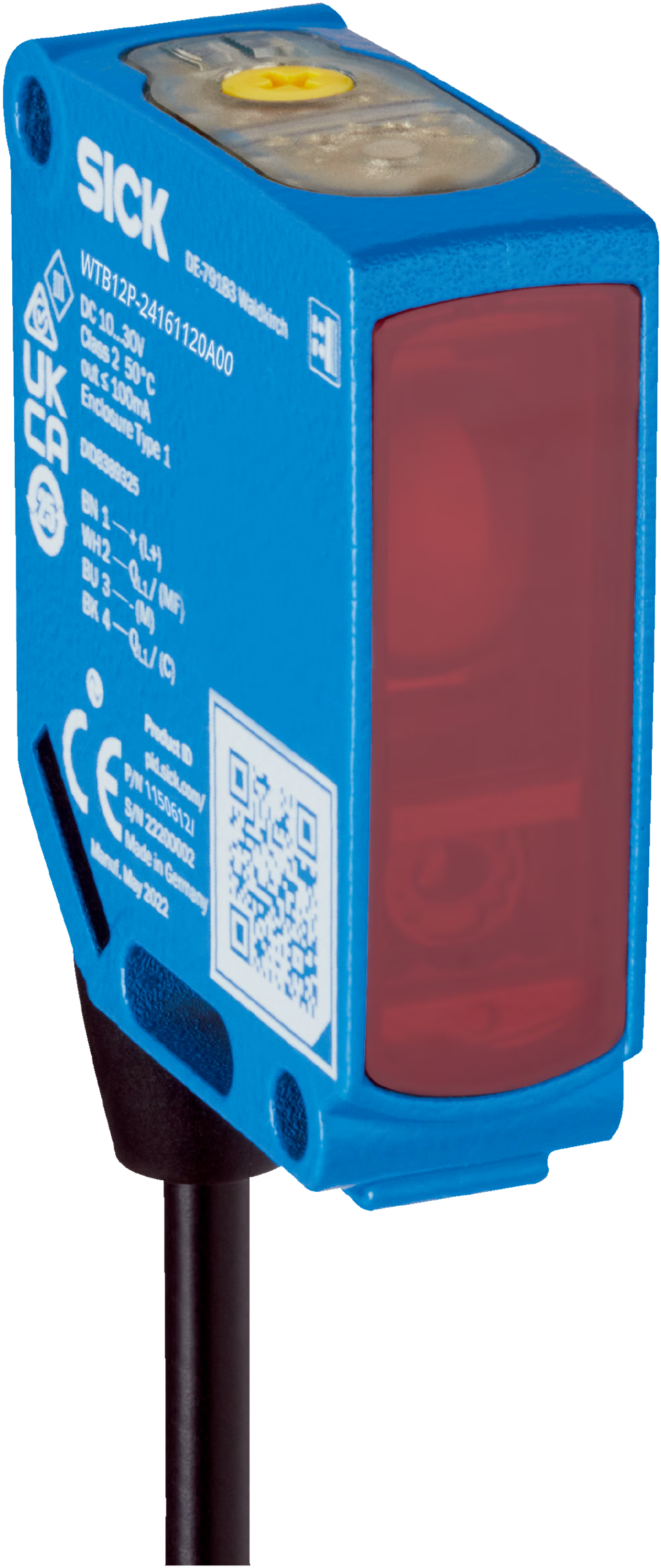

The SICK WTB12F-1H161A20A00ZDZZZZZZZZZ1 is a brand-new original diffuse reflection photoelectric sensor of the W12 series. It adopts visible red LED light source and works under 10–30 V DC power supply, equipped with PNP output and switchable Light-ON / Dark-ON function to connect with various PLC control systems. It has IP67 protection grade for good dust and moisture resistance in tough industrial workshop environments.
With robust zinc die-cast rectangular metal housing, this sensor uses M12 4-pin connector for fast installation and wiring. It detects targets by capturing reflected light directly from the object surface, no extra reflector needed.
This sensor is widely applied for object detection on conveyor belts, packaging machinery and material handling automated production lines. Each unit undergoes full quality inspection before shipment and comes with CE certification. We supply genuine SICK sensors with MOQ of 1 piece and provide stable global shipping services to meet your factory automation demands.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model | WTB12F-1H161A20A00ZDZZZZZZZZZ1 |
| Product Name | Photoelectric Sensor |
| Product Type | Diffuse Reflection Photoelectric Sensor |
| Series | W12 Series |
| Working Principle | Diffuse reflection object detection |
| Light Source | Visible Red LED |
| Housing Material | Zinc die-cast metal |
| Shape | Rectangular |
| Dimension(W×H×D) | 15.8mm × 49.2mm × 43.1mm |
| Connection | M12 4-pin connector |
| Output Type | PNP, Light-ON / Dark-ON switchable |
| Supply Voltage | 10 … 30 V DC |
| IP Rating | IP67 |
| Ambient Temperature | -25℃ ~ +55℃ |
| Net Weight | 0.22 kg |
| Gross Weight | 0.27 kg |
| Origin | Germany |
| Condition | Brand New Original |
| Application | Object detection, conveyor, packaging machinery, material handling |
| Certificate | CE |
| MOQ | 1 Piece |
