LFMAP-D-MIDI
Product Overview

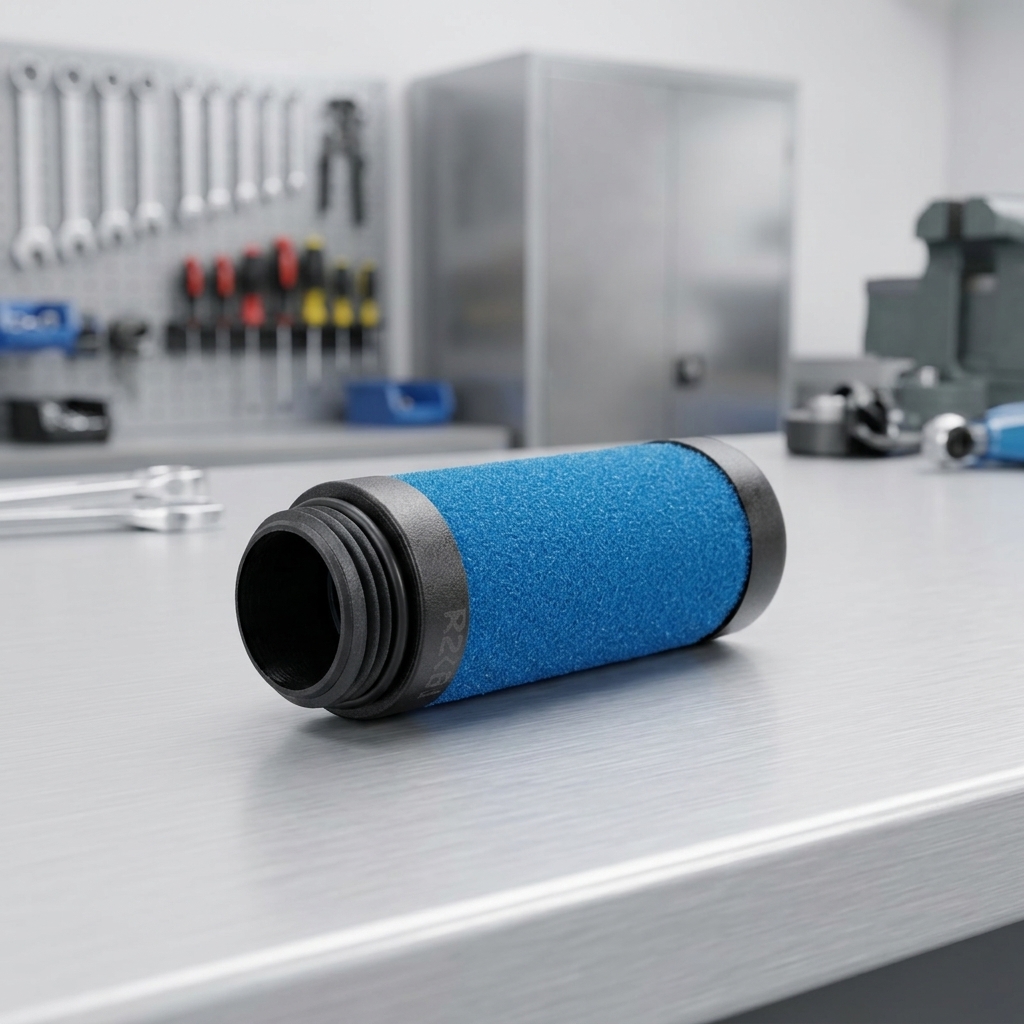

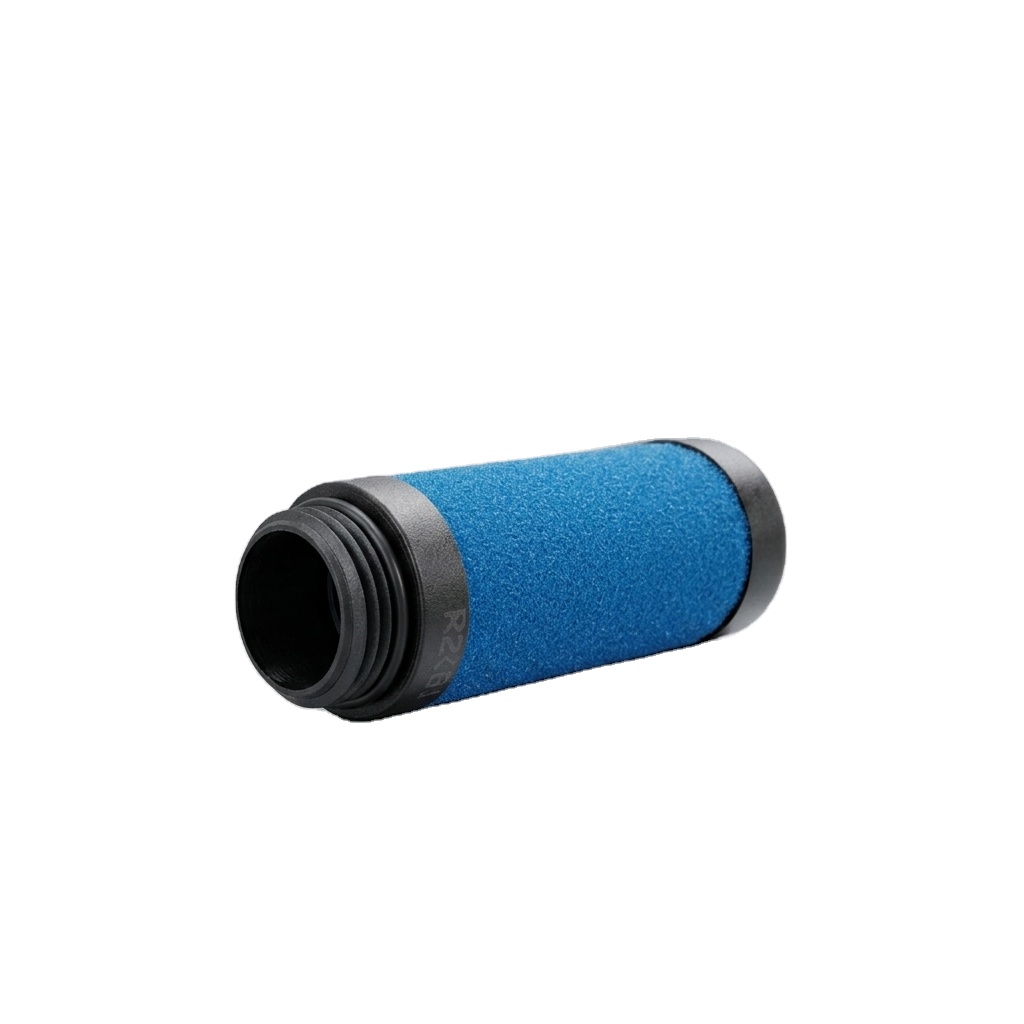

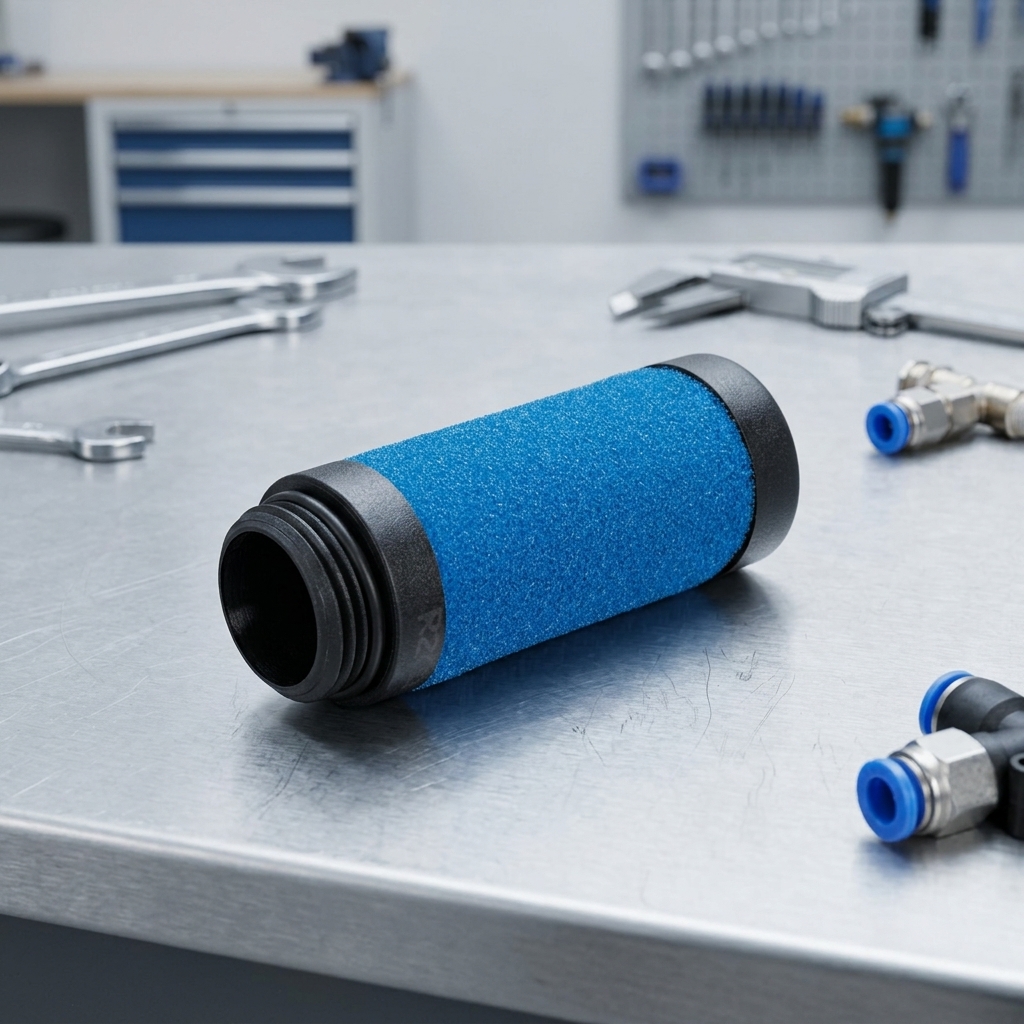

LFMAP-D-MIDI, Part No.162675, is Festo D series MIDI size micro filter cartridge. It is replacement spare element for LFMA series micro filter. Filtration accuracy up to 0.01μm, effectively remove fine oil mist and tiny particles in compressed air. LABS/PWIS compliant, suitable for paint industry and high cleanliness pneumatic applications.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | LFMAP-D-MIDI |
| Part No. | 162675 |
| Type | Micro-filter cartridge |
| Series | D series, MIDI size |
| Filtration grade | 0.01 µm |
| Filter material | Borosilicate fibre |
| Working medium | Compressed air, inert gas |
| Residual oil content | ≤0.01 mg/m³ |
| Temperature range | 1.5 ~ 60 ℃ |
| Feature | LABS / PWIS compliant, high efficiency micro filter element |
| Corrosion resistance class | CRC2 |
| RoHS | Compliant |
