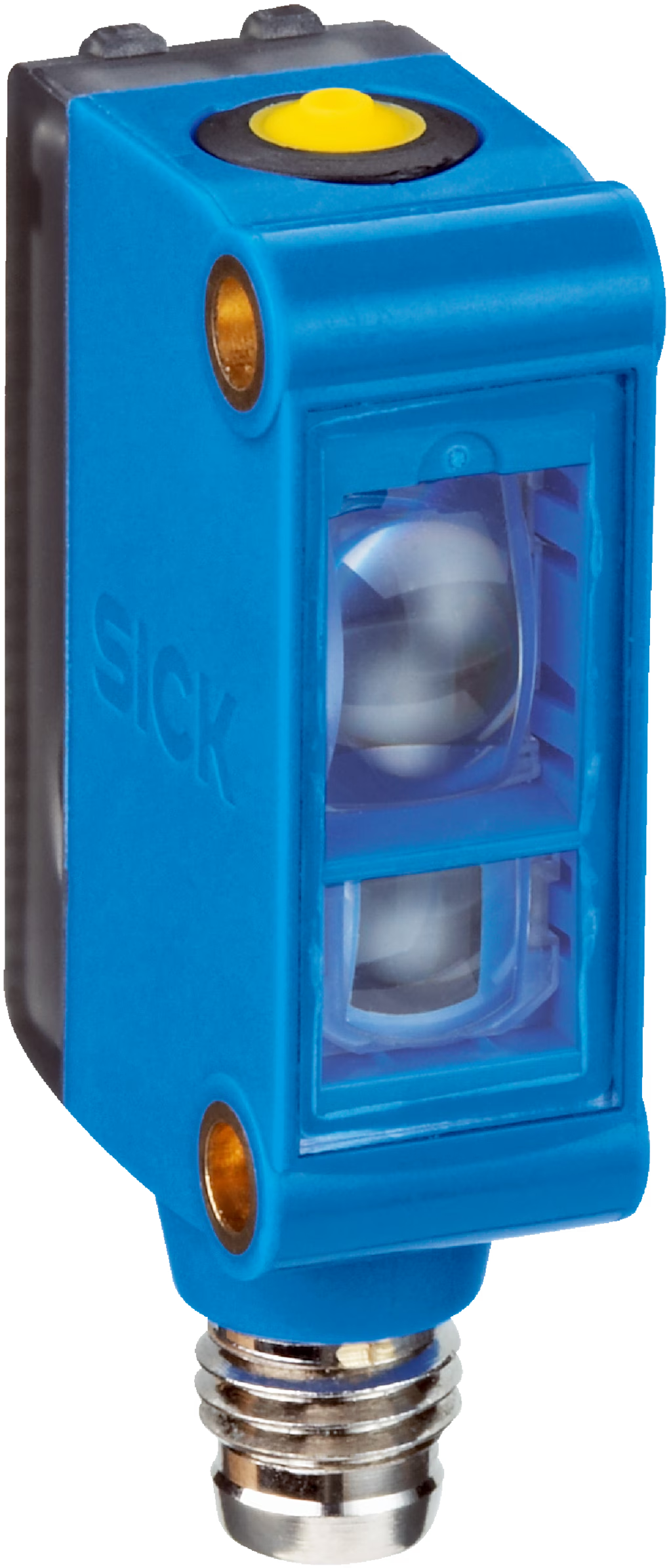

KTM-WN117A1P 1061787
Product Overview
KTM-WN117A1P (1061787) is SICK KTM Prime compact RGB contrast sensor with IO-Link. 12.5 mm sensing distance, vertical light spot 1.6×9.5 mm, single NPN output. It supports static & dynamic two-point teach-in and proximity teach function. Small ABS housing, IP67 protection, M8 4-pin connector. Switching frequency up to 15 kHz, high grayscale resolution, ideal for low-contrast marks and glossy films in packaging and labeling machines. New original genuine.
| 属性名 | 属性值 |
|---|---|
| Brand | SICK |
| Part No. | KTM-WN117A1P |
| SICK ID | 1061787 |
| Product Series | KTM Prime |
| Product Type | Contrast Sensor / Register Sensor |
| Sensing Distance | 12.5 mm |
| Sensing Tolerance | ±3 mm |
| Light Source | RGB LED |
| Spot Size | 1.6 mm × 9.5 mm, vertical |
| Dimension | 12 mm × 31.5 mm × 21 mm |
| Switching Frequency | 15 kHz |
| Response Time | 32 µs |
| Supply Voltage | 12 V DC ~ 24 V DC |
| Output Type | NPN |
| Output Channel | 1 |
| Interface | IO-Link |
| Protection Class | IP67 |
| Connection | M8, 4-pin male connector |
| Housing Material | ABS Plastic |
| Teach Mode | Static / Dynamic 2-point teach-in + proximity to mark |
| Operating Temp | -10 ℃ ~ +55 ℃ |
| Origin | Germany |
| Warranty | 1 Year |
| Certificate | RoHS, UL |
| Net Weight | 0.02 kg |
| Gross Weight | 0.04 kg |
