KTM-MB31191P 1062203
Product Overview

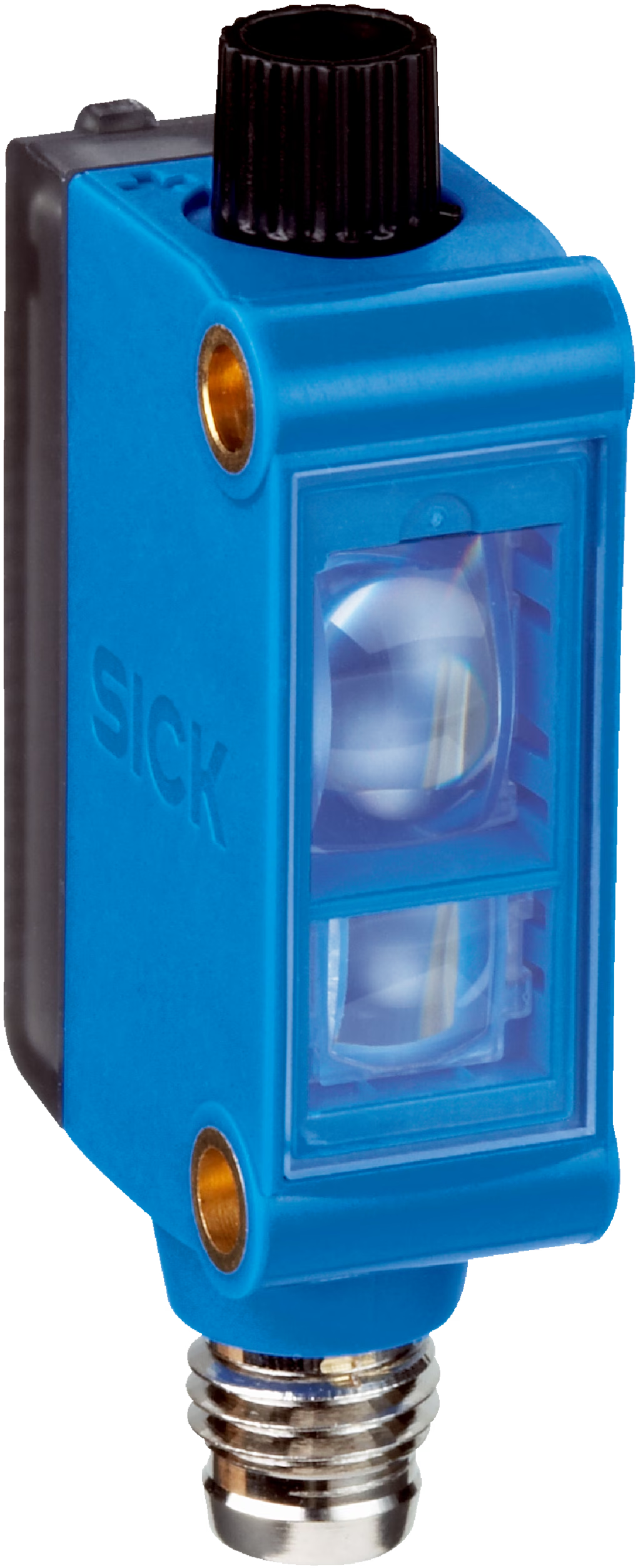

KTM-MB31191P (1062203) is SICK compact KTM white-light contrast sensor without IO-Link. 12.5 mm sensing distance, round light spot Ø 2 mm, 1 switchable PNP/NPN output. It adopts potentiometer for threshold adjustment. Compact housing, IP67 protection, M8 4-pin connector. Switching frequency up to 10 kHz, widely used for contrast mark detection and print register control on printing, packaging and labeling machines. New original genuine.
| 属性名 | 属性值 |
|---|---|
| Brand | SICK |
| Part No. | KTM-MB31191P |
| SICK ID | 1062203 |
| Product Series | KTM |
| Product Type | Contrast Sensor |
| Sensing Distance | 12.5 mm |
| Sensing Tolerance | ±3 mm |
| Light Source | White LED |
| Spot Size | Ø 2 mm, round |
| Dimension | 12 mm × 31.5 mm × 21 mm |
| Switching Frequency | 10 kHz |
| Response Time | 50 µs |
| Supply Voltage | 12–24 V DC |
| Output Type | PNP / NPN switchable |
| Output Channel | 1 |
| Interface | No IO-Link |
| Protection Class | IP67 |
| Connection | M8, 4-pin male connector |
| Adjustment | Potentiometer |
| Operating Temp | -10 ℃ ~ +55 ℃ |
| Origin | Germany |
| Warranty | 1 Year |
| Certificate | RoHS, UL |
| Net Weight | 0.02 kg |
| Gross Weight | 0.05 kg |
