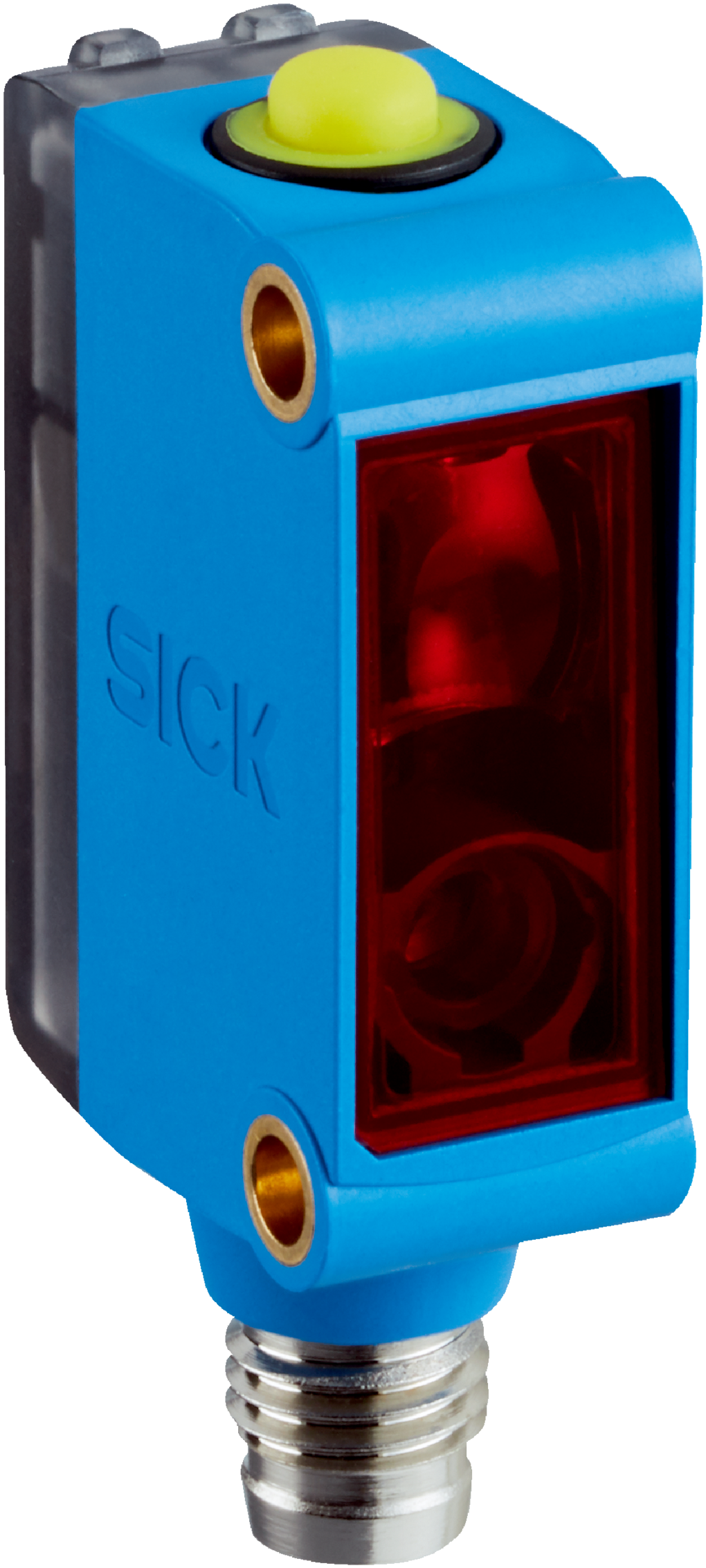

KTM-LN227A1P 1105915
Product Overview
KTM-LN227A1P (1105915) is SICK compact KTM red laser contrast sensor with IO-Link. Max 50 mm sensing distance, round laser spot Ø1.7 mm, single NPN output. It supports static and dynamic 2-point teach-in. Compact ABS housing, IP67 protection, M8 4-pin male connector. 4 kHz switching frequency, excellent for small mark detection and print register control on printing, packaging and labeling machines. New original genuine.
| 属性名 | 属性值 |
|---|---|
| Brand | SICK |
| Part No. | KTM-LN227A1P |
| SICK ID | 1105915 |
| Product Series | KTM |
| Product Type | Contrast Sensor |
| Sensing Distance | ≤ 50 mm |
| Sensing Tolerance | ±30 mm |
| Light Source | Red Laser, 680 nm, Laser Class 1 |
| Spot Size | Ø 1.7 mm, round |
| Dimension | 12 mm × 31.5 mm × 21 mm |
| Switching Frequency | 4 kHz |
| Response Time | 125 µs |
| Supply Voltage | 10–30 V DC |
| Output Type | NPN |
| Output Channel | 1 |
| Interface | IO-Link |
| Protection Class | IP67 |
| Connection | M8, 4-pin male connector |
| Teach Mode | Static / Dynamic 2-point teach-in |
| Operating Temp | -10 ℃ ~ +55 ℃ |
| Origin | Germany |
| Warranty | 1 Year |
| Certificate | RoHS, UL |
| Net Weight | 0.02 kg |
| Gross Weight | 0.05 kg |
