KTS-WB9224115AZZZZ 1221347
Product Overview

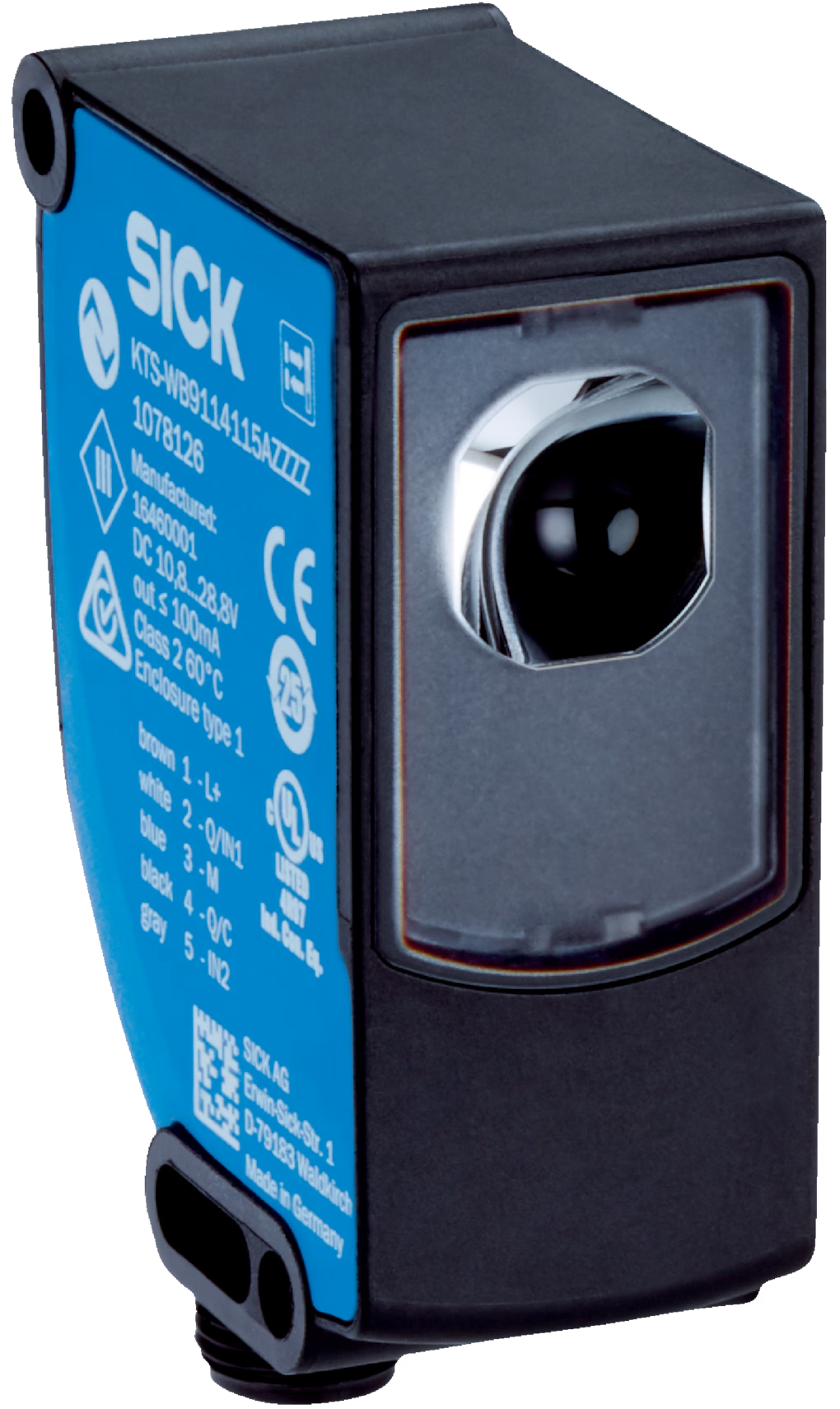

KTS-WB9224115AZZZZ (1221347) is SICK KTS RGB contrast sensor with IO-Link. 14 mm sensing distance, vertical light spot 2×4 mm, single push-pull output (PNP/NPN). It supports static and dynamic 2-point teach-in. VISTAL plastic housing, IP67 protection, M12 5-pin male connector. Switching frequency up to 10 kHz, suitable for color mark tracking and print register control on printing, packaging and labeling machines. New original genuine.
| 属性名 | 属性值 |
|---|---|
| Brand | SICK |
| Part No. | KTS-WB9224115AZZZZ |
| SICK ID | 1221347 |
| Product Series | KTS |
| Product Type | Contrast Sensor |
| Sensing Distance | 14 mm |
| Sensing Tolerance | ±3 mm |
| Light Source | RGB LED |
| Spot Size | 2 mm × 4 mm, vertical |
| Dimension | 30 mm × 53 mm × 78.5 mm |
| Switching Frequency | 10 kHz |
| Response Time | 50 µs |
| Supply Voltage | 10.8–28.8 V DC |
| Output Type | Push-pull, PNP/NPN |
| Output Channel | 1 |
| Interface | IO-Link |
| Protection Class | IP67 |
| Connection | M12, 5-pin male connector |
| Housing Material | VISTAL® Plastic |
| Teach Mode | Static / Dynamic 2-point teach-in |
| Operating Temp | -10 ℃ ~ +55 ℃ |
| Origin | Germany |
| Warranty | 1 Year |
| Certificate | RoHS, UL |
| Net Weight | 0.09 kg |
| Gross Weight | 0.12 kg |
