PEN-8X1,25-BL 551458
Product Overview

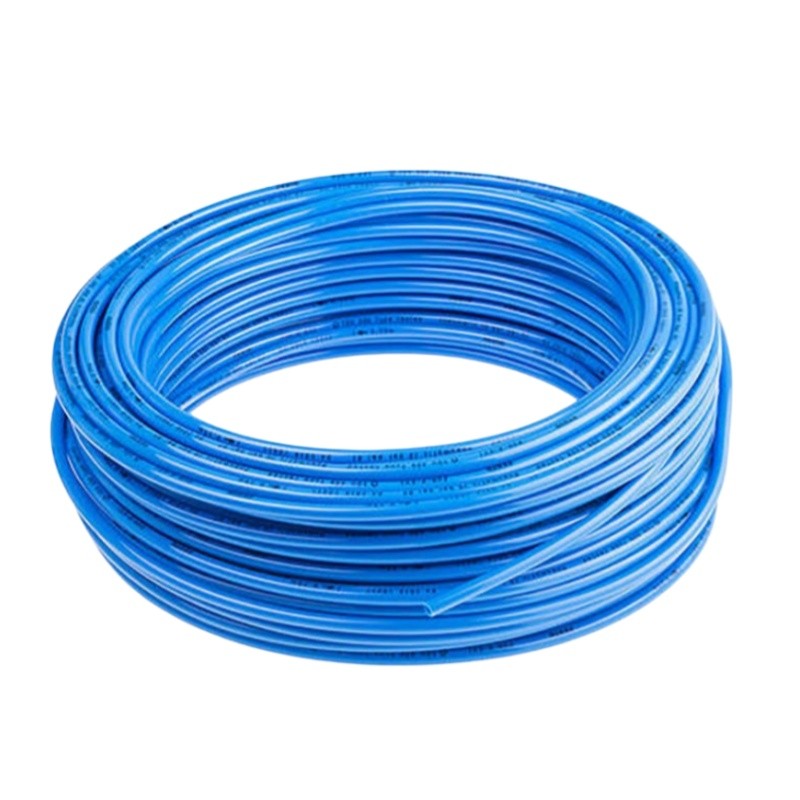

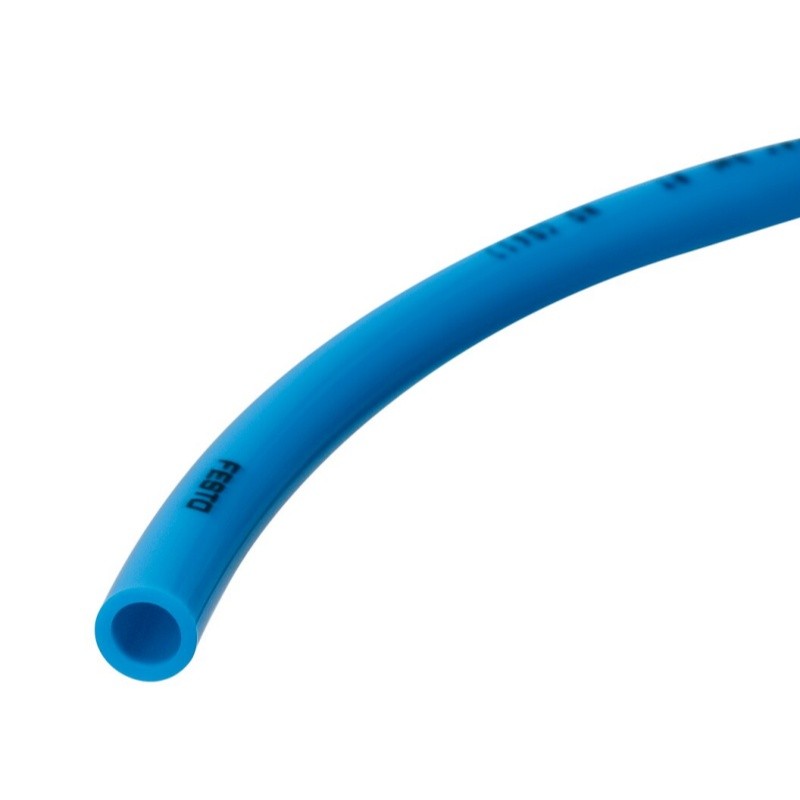

PEN-8X1,25-BL (Part No.551458) is Festo PEN series polyethylene pneumatic plastic tubing. Size OD 8mm, wall thickness 1.25mm, inner diameter 5.5mm, blue color. Made of PE material with light weight, good flexibility and corrosion resistance. Working pressure -0.95~10 bar at 20℃, ambient temperature -40~60℃. Low friction, easy installation, RoHS compliant. Widely used for compressed air transmission in industrial automation pneumatic circuits.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | PEN-8X1,25-BL |
| MPN | 551458 |
| Product Type | Pneumatic Plastic Tubing |
| Series | PEN Series |
| Material | Polyethylene PE |
| Size | OD 8mm, Wall thickness 1.25mm, ID 5.5mm |
| Color | Blue (BL) |
| Min Bending Radius | 24 mm |
| Working Medium | Compressed air (ISO 8573-1:2010 [7:-:-]) |
| Working Pressure | -0.95 ~ 10 bar at 20℃ |
| Ambient Temperature | -40 ~ 60 ℃ |
| Feature | Light weight, good flexibility, low friction, corrosion resistant |
| Compliance | RoHS compliant, PWIS conformity |
| Application | Pneumatic Automation System |
