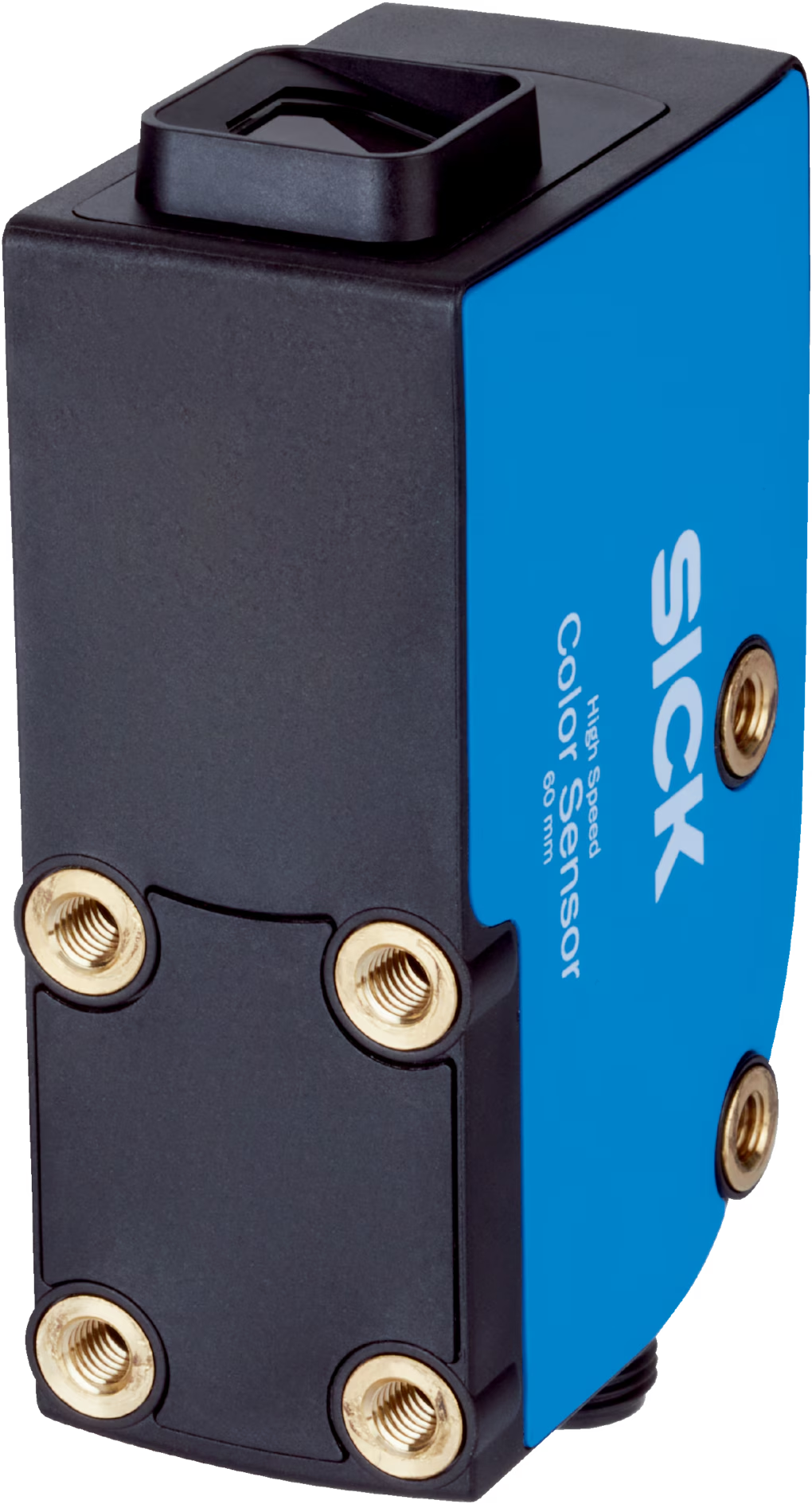

CSX-WBFA54225AA10Z 1120185
Product Overview
CSX-WBFA54225AA10Z (1120185) is SICK CSS/CSX High Speed color sensor with IO-Link interface and M12 5-pin connector. 60 mm sensing distance, Ø12 mm round light spot, 13.8 kHz high switching frequency. It supports single and multi-value teach-in, up to 15 colors recognition in coded mode and 24 colors via IO-Link. IP67 protection, push-pull PNP/NPN output. Suitable for high-speed color sorting, color mark inspection in printing, packaging and automated production lines. New original genuine.
| 属性名 | 属性值 |
|---|---|
| Brand | SICK |
| Part No. | CSX-WBFA54225AA10Z |
| SICK ID | 1120185 |
| Product Series | CSS/CSX High Speed |
| Product Type | Color Sensor |
| Sensing Distance | 60 mm |
| Sensing Tolerance | ±9 mm |
| Light Source | RGB LED |
| Spot Size | Ø12 mm, round large |
| Dimension | 30 mm × 53 mm × 78.5 mm |
| Switching Frequency | 13.8 kHz |
| Response Time | 36 µs |
| Supply Voltage | 10.8–28.8 V DC |
| Output Type | Push-pull, PNP/NPN |
| Output Channel | 4 × hardware switching outputs |
| Interface | IO-Link |
| Protection Class | IP67 |
| Connection | M12, 5-pin male connector |
| Housing Material | VISTAL® Plastic |
| Color Mode | C / C+I |
| Teach Mode | Single value / Multi value teach-in |
| Job Banks | 4 |
| Sensitivity Adjustment | Continuous 0–999 |
| Max Color Recognition | 15 colors coded mode; 24 colors via IO-Link |
| MTTFD | 263.7 years |
| Origin | Germany |
| Warranty | 1 Year |
| Certificate | RoHS, UL |
| Net Weight | 0.09 kg |
| Gross Weight | 0.12 kg |
