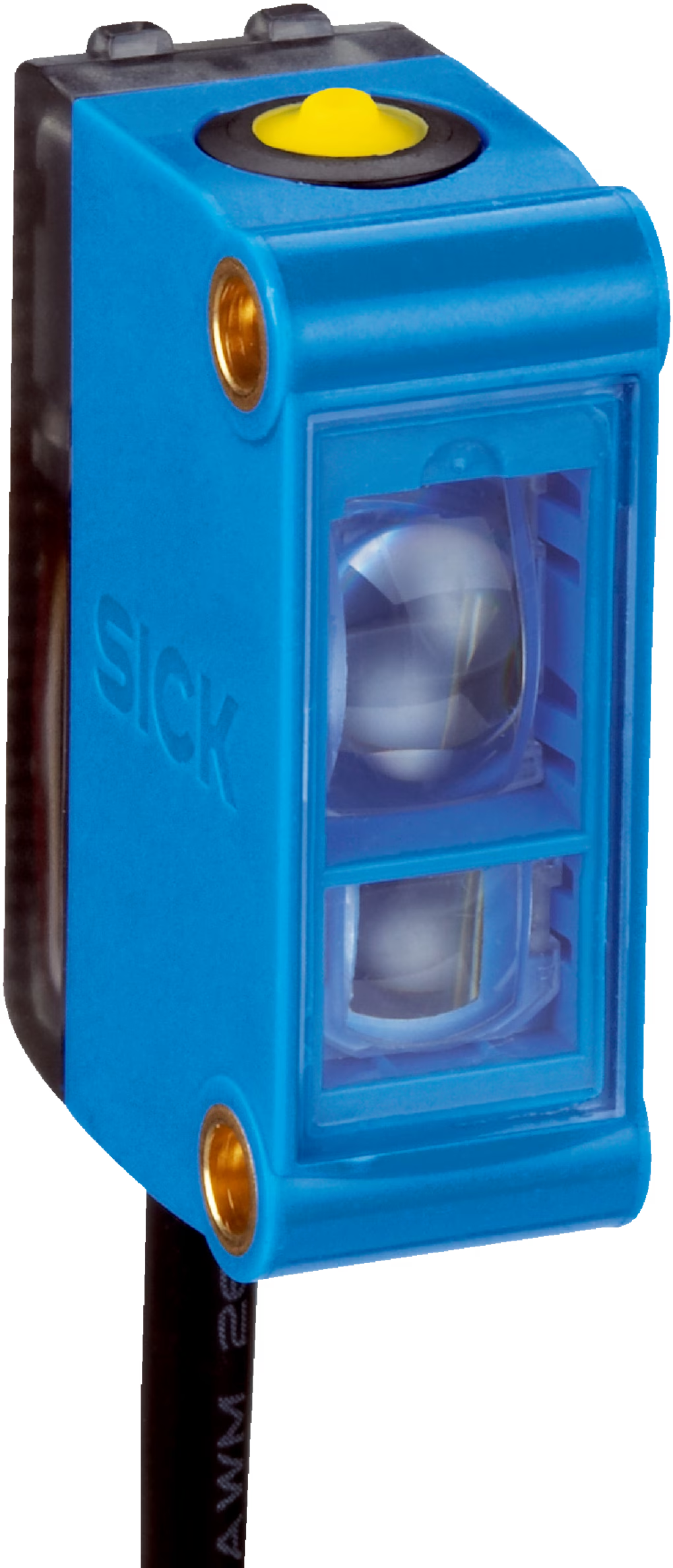

KTM-WN11182P 1062150
Product Overview
KTM-WN11182P (1062150) is SICK KTM miniature RGB contrast sensor without IO-Link. 12.5 mm sensing distance, vertical light spot 1.6×9.5 mm, single NPN output. It supports static and dynamic 2-point teach-in with ET dynamic teach function. Compact ABS housing, IP67 protection, M12 4-pin male connector with 0.2m cable. High switching frequency up to 15 kHz, ideal for high-speed color mark detection and register control on printing, packaging and labeling machines. New original genuine.
| 属性名 | 属性值 |
|---|---|
| Brand | SICK |
| Part No. | KTM-WN11182P |
| SICK ID | 1062150 |
| Product Series | KTM |
| Product Type | Contrast Sensor |
| Sensing Distance | 12.5 mm |
| Sensing Tolerance | ±3 mm |
| Light Source | RGB LED |
| Spot Size | 1.6 mm × 9.5 mm, vertical |
| Dimension | 12 mm × 31.5 mm × 21 mm |
| Switching Frequency | 15 kHz |
| Response Time | 32 µs |
| Supply Voltage | 12–24 V DC |
| Output Type | NPN |
| Output Channel | 1 |
| Interface | No IO-Link |
| Protection Class | IP67 |
| Connection | Cable with M12, 4-pin male connector, 0.2m |
| Housing Material | ABS Plastic |
| Teach Mode | Static / Dynamic 2-point teach-in, ET dynamic teach |
| Operating Temp | -10 ℃ ~ +55 ℃ |
| Origin | Germany |
| Warranty | 1 Year |
| Certificate | RoHS, UL |
| Net Weight | 0.02 kg |
| Gross Weight | 0.05 kg |
