QS-G1/4-6
Product Overview

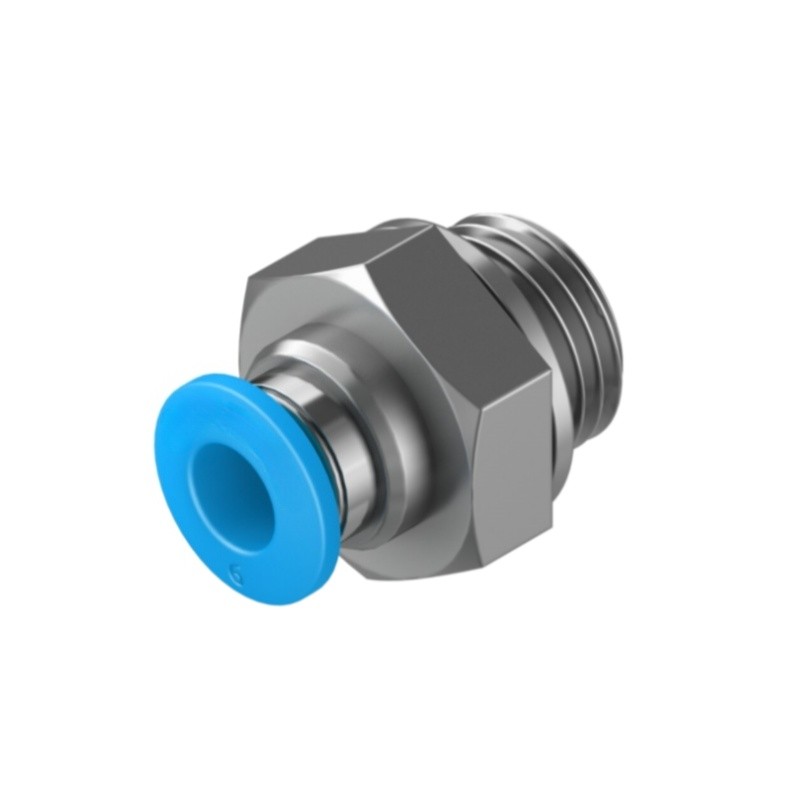

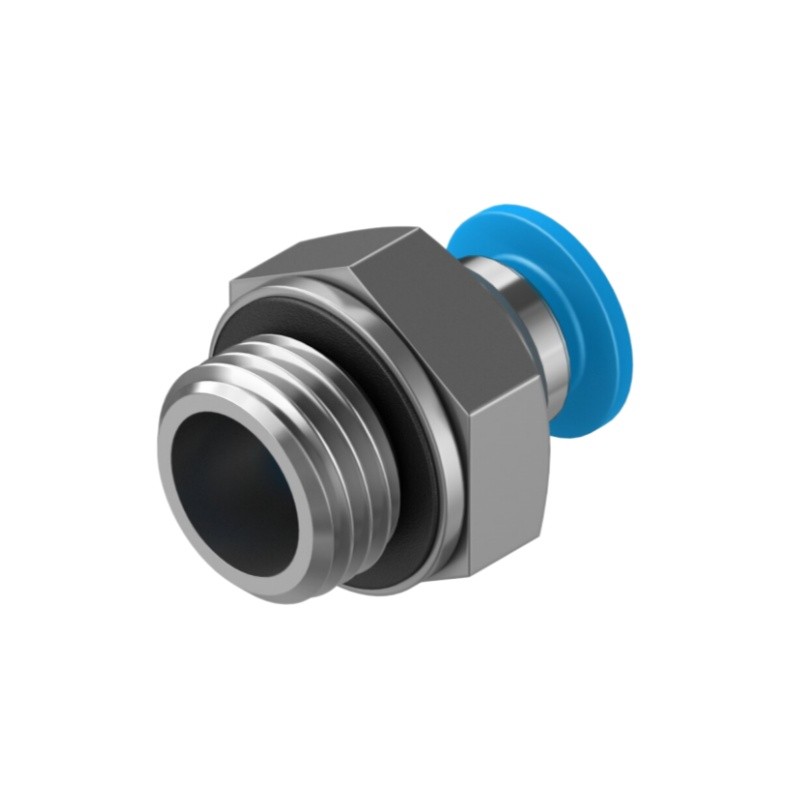

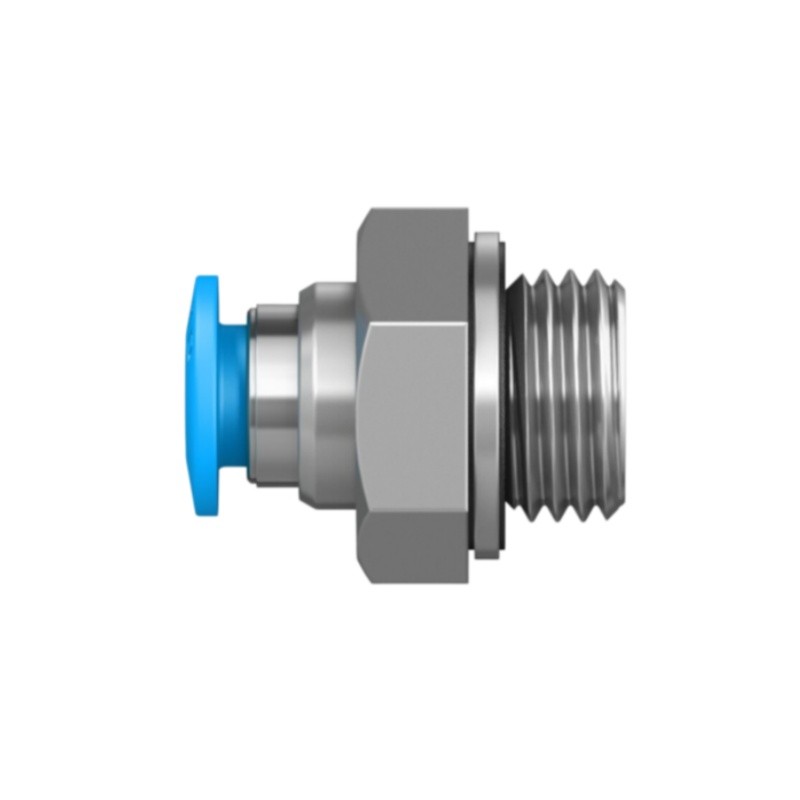

QS-G1/4-6, Part No.153048, belongs to Festo QS series push-in fitting. One side is G1/4 parallel male thread, the other side is quick insert port for 6mm outer diameter pneumatic tube. Tube can be inserted directly; press the release ring to pull out the tube without tools. It is widely used to connect pneumatic components with internal thread ports and pneumatic tubes in automation pneumatic circuits.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | QS-G1/4-6 |
| Part No. | 153048 |
| Type | Straight push-in fitting, male thread |
| Thread | G1/4 male parallel thread |
| Tube OD | 6 mm |
| Nominal bore | 4 mm |
| Working medium | Compressed air |
| Working pressure | -0.95 ~14 bar |
| Temperature range | -10 ~ 80 ℃ |
| Material | Body:PBT,Stud:Nickel-plated brass,Release ring:POM,Seal:NBR,Tube retainer:High-alloy stainless steel |
| Weight | 4.20 g |
| Package | 10 pcs/pack |
| Feature | Push-pull quick connection, straight male thread design, tool-free tube assembly and disassembly, compact structure |
| RoHS | Compliant |
| Corrosion resistance class | CRC1 |
